Complete Late Model CNC Mold Facility
Surplus to World-Renowned Tire Manufacturer - Featuring 2024 Toshulin BT1250 C1 CNC Vertical Turning Center with Live Milling, (8) 2022 Haas VR-8 CNC 5-Axis VMCs, (3) 2021 Haas UMC 1000 CNC 5-Axis Universal Machining Centers, 2015 Okuma Multus B550W CNC Multi-Axis Mill/Turn, (2) 2016 Makino D500 CNC 5-Axis VMCs (2) Toshulin SKS12 CNC VTC with Live Milling, (4) FPT Stinger CNC 5-Axis Bridge Mills, 2022 Rollomatic 660XW CNC 6-Axis Tool Grinder, Star CTG3 CNC Tool Grinder, 3D Printers, Tooling, Inspection, Material Handling, Shop Support and More!
August 25, 2026
Type:
Auction – Webcast
Location:
Findlay, OH
Date:
Aug 25, 2026
, 11:00 AM
US/Eastern
Preview:
By appointment only.
Buyer's Premium:
20.0%
In Conjunction With:
Complete Late Model CNC Mold Facility
$0.00
Details:
CNC VERTICAL TURNING CENTERS WITH LIVE MILLING

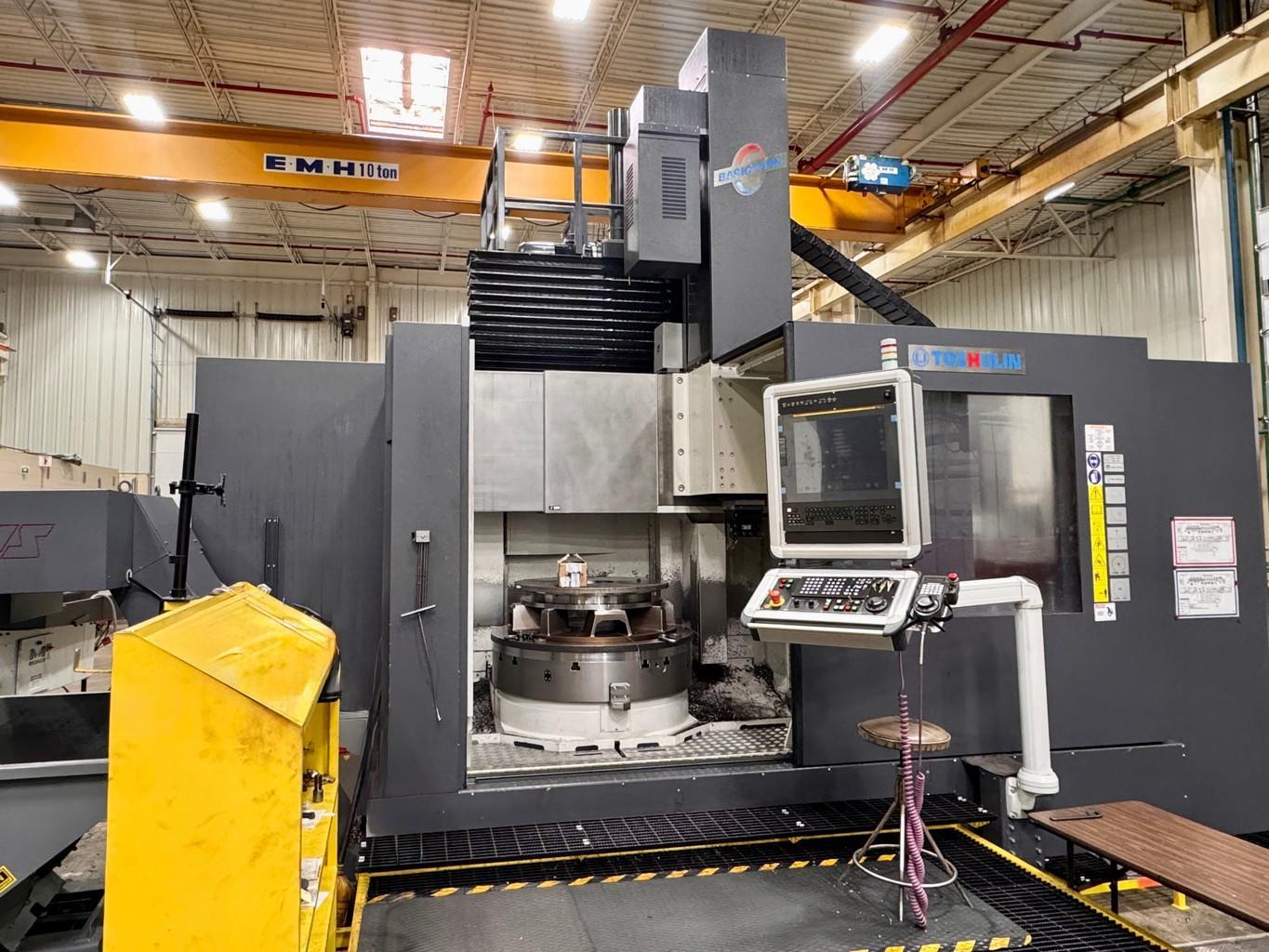

- 2024 Toshulin BT 1250 C1 CNC Vertical Turning Center with Live Milling, Fanuc Series 31i-B Plus CNC Control, 49" Diameter Table, 55" Max. Swing, 55" Max. Work Height, 48-Position Automatic Tool Changer, Right Angle Head, 12-Position Right Angle Head Changer, Spindle Speeds to 500 RPM, Live Milling Spindle Speeds to 3000 RPM, C-Axis .001 Degrees, Thru Spindle Coolant, Flood Coolant Filtration System, Spindle Chiller, LNS Chip Conveyor, S/N 1936

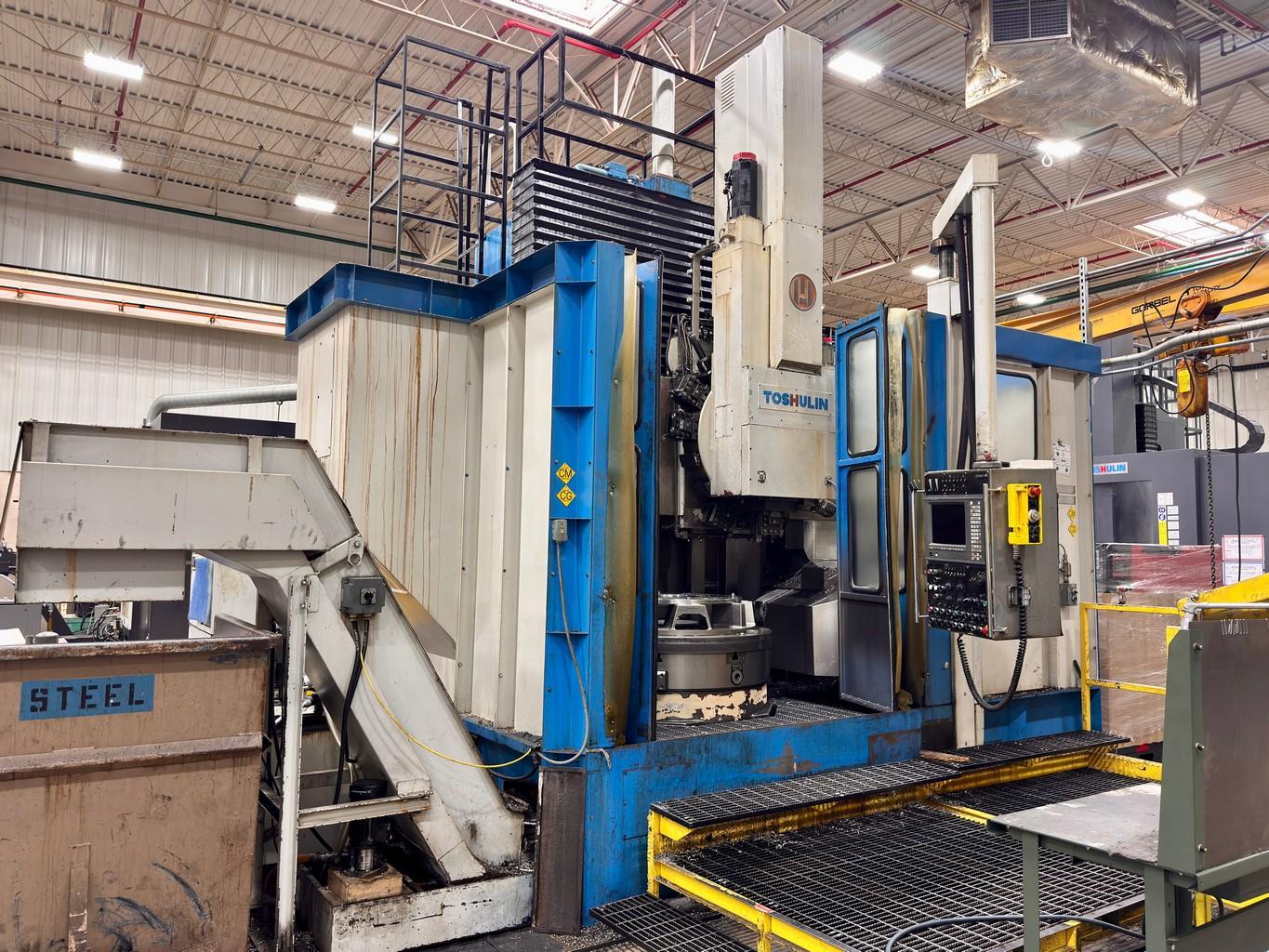

- Toshulin SKS 12 CNC Vertical Turning Center with Live Milling, Fanuc 16-T CNC Control, 49" 4-Jaw Chuck, 55" Max. Swing, 55" Max. Work Height, 15-Position Turret, Spindle Speeds to 500 RPM, Live Milling Spindle Speeds to 3000 RPM, C-Axis .001 Degrees, Chip Conveyor, S/N 1314 [1998]
- Toshulin SKS 12 CNC Vertical Turning Center with Live Milling, Fanuc 16-T CNC Control, 49" 4-Jaw Chuck, 55" Max. Swing, 55" Max. Work Height, 15-Position Turret, Spindle Speeds to 500 RPM, Live Milling Spindle Speeds to 3000 RPM, C-Axis .001 Degrees, Chip Conveyor, S/N 225
- (8) 2022 Haas VF-8 CNC 5-Axis Vertical Machining Centers, Haas CNC Control, Travels: X-64”, Y-40”, Z-42”, Table Size 64” x 36”, 50-Position Side-Mounted ATC, 20,000 RPM HSK-A63 Spindle, Renishaw Probe, High Pressure Coolant, Chip Auger, S/Ns: 1192263, 1192039, 1191932, 1827611, 1182192, 1181963, 1181885, 1178891

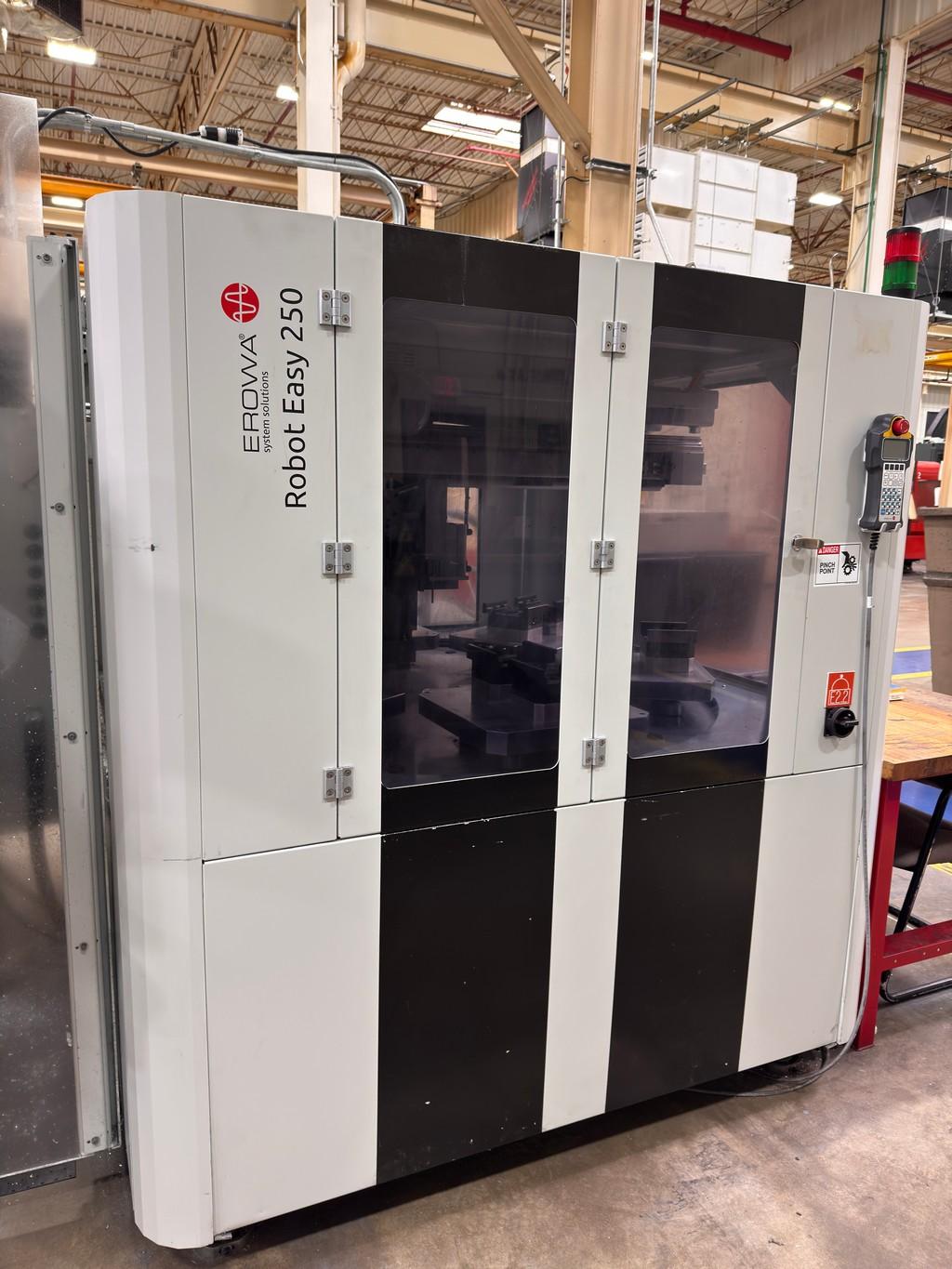

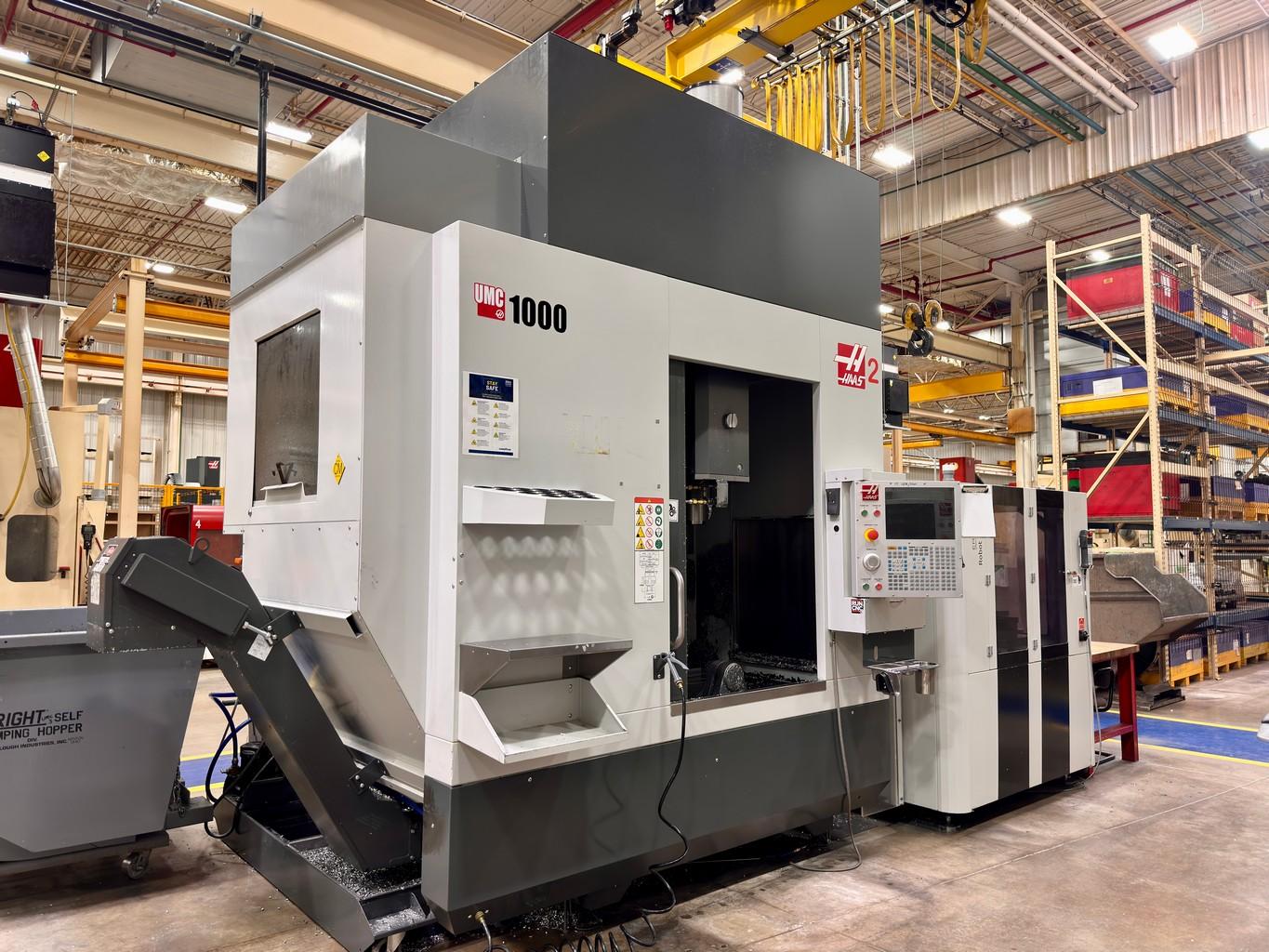

- (3) 2021 Haas UMC-1000 CNC 5-Axis Vertical Machining Centers with Erowa Easy 250 Robot, Haas CNC Control, Travels: X-40", Y-25", Z-25" Travels, 25" Diameter 2-Axis Trunnion Table with B-Axis Tilt and C-Axis Rotation, 15,000 RPM HSK-A63 Spindle, 50-Position Side Mount Tool Changer, Renishaw Probe, Erowa 4-Position Fixture, Erowa Easy 250 Robot with Pendant, Through Spindle Coolant, High Pressure Coolant, Chip Conveyor, S/N 1178166 [2021], S/N 1174645 [2020], S/N 1167233 [2019]

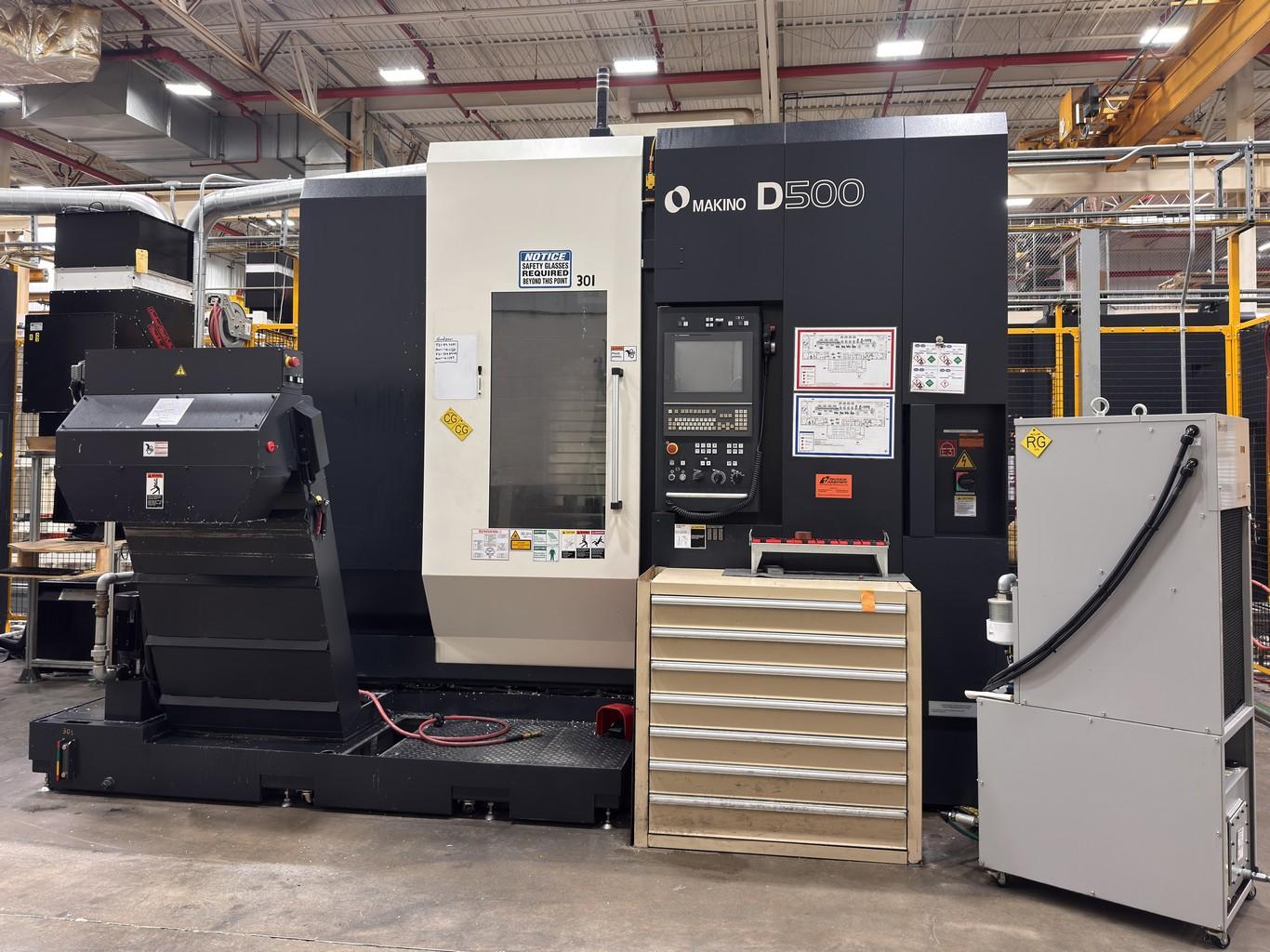

- (2) 2015 Makino D500 CNC 5-Axis CNC Vertical Machining Centers, Professional 6 CNC Control w / Pendant, Travels: X-21.6”, Y-39.3”, Z-19.6”, with 19.6” Dia. 2-Axis Trunnion Rotary Table, +30/-120 Deg. Table Tilt, 30,000 RPM Spindle, HSKA-63 Taper, Through Spindle Coolant, 60-Position Automatic Tool Changer, Kanto Seiki Spindle Chiller, Oil-Air Lubrication, LNS Chip Conveyor, S/N-299, S/N- 301 [2015]
- (4) Midaco 2-APC Automatic Pallet Changers

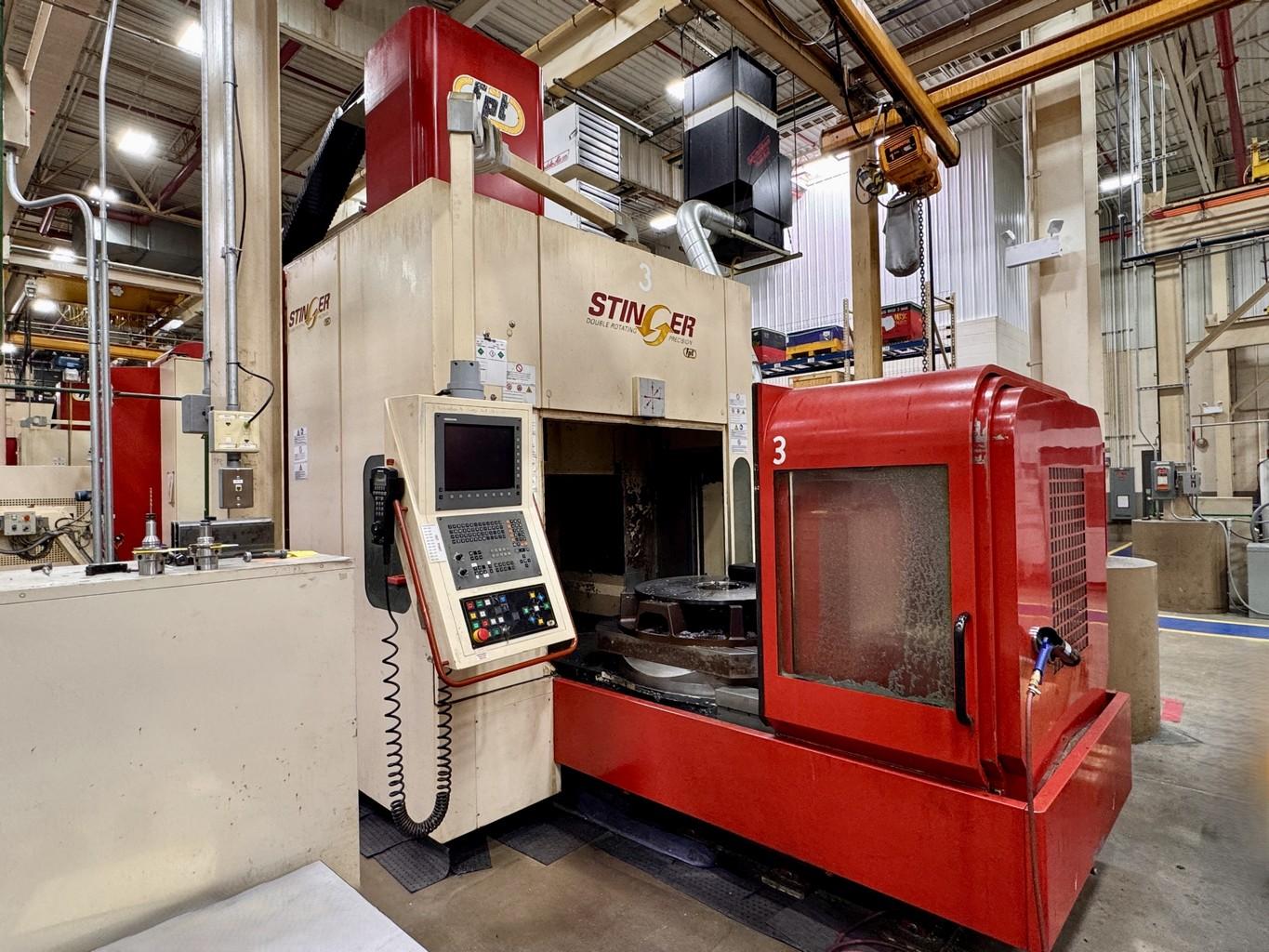

- (4) FPT Stinger 5-Axis CNC Bridge-Type Vertical Machining Center, Heidenhain iTNC 530 CNC Controls, Travels: X-68.8”, Y-55.1”, Z-23.6”, with 47.24” x 39.37” Built-In Contouring Rotary Table, 18,000 RPM Spindle, HSK-63 Taper, 2-Axis Milling Head with +/- 185 Deg. Swivel, 60-Position Automatic Tool Changer, Thru-Spindle Coolant, Chip Conveyor, Spindle Chiller, S/N-SV170523, S/N-SV170522, S/N-SV170521, S/N-SV17052

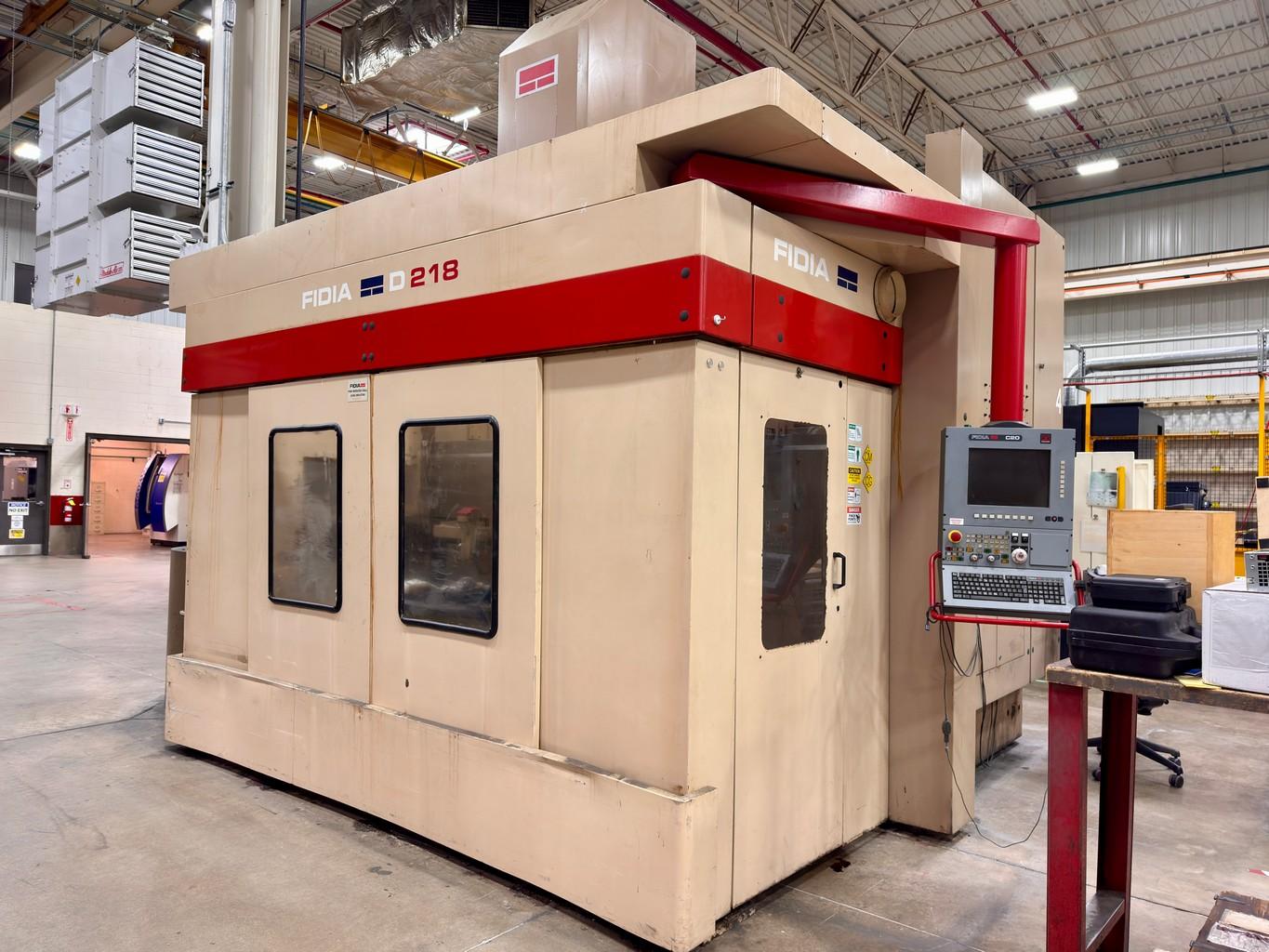

- Fidia D218 CNC 5-Axis Bridge-Type Vertical Machining Center, Fidia C-20 Control, 98" x 59" T-Slotted Table, Fidia XTAB-001 Continuous Bi-Rotary Spindle Head, Approx. X-78", Y-39", Z-31" Travels, 20-Tool Automatic Tool Changer, S/N PCD0854
- (8) Nakanishi HES510 Air Spindles, 50,000 RPM, HSK-A63 taper (used with FPT Stingers)

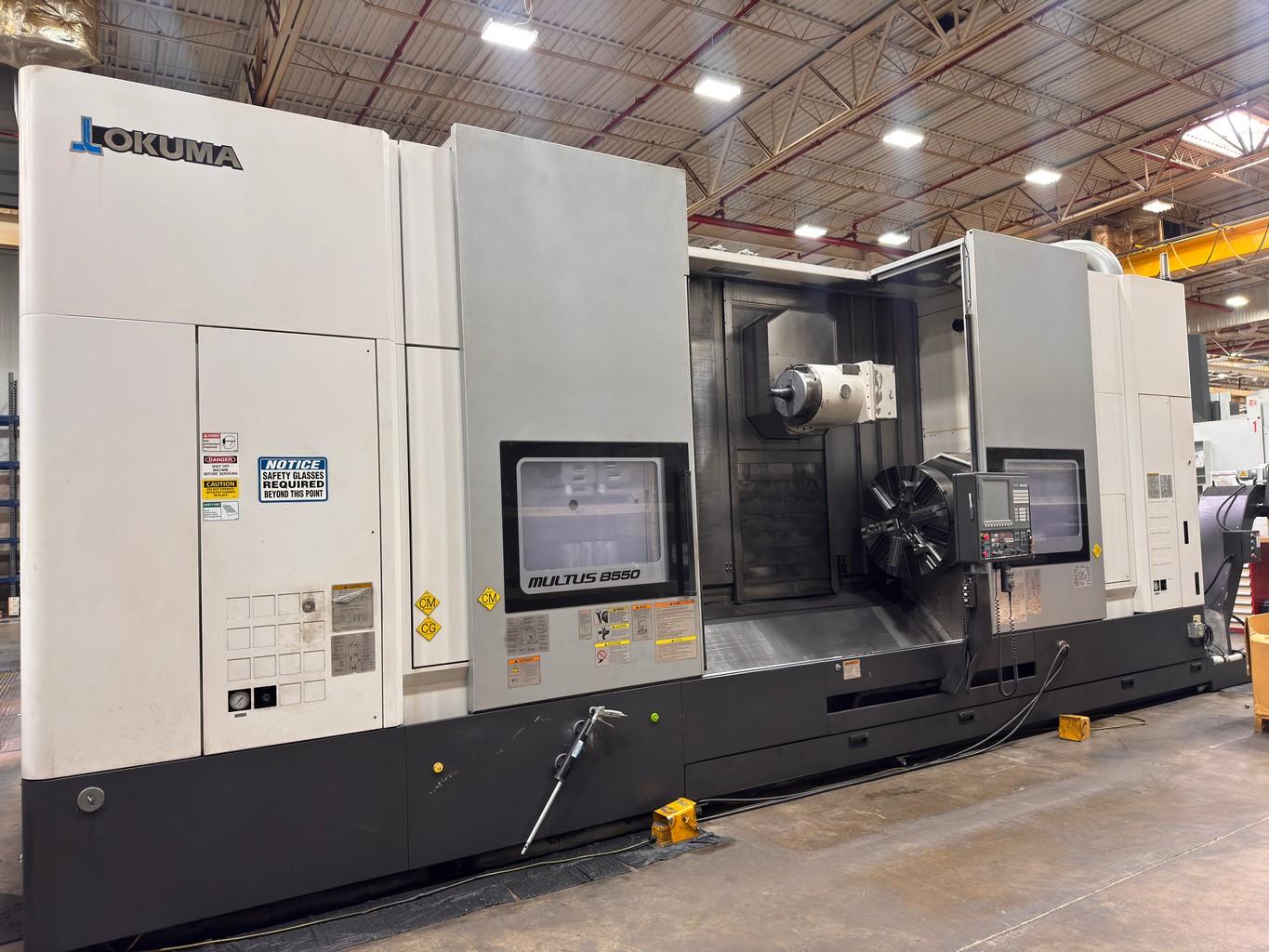

- 2015 Okuma Multus B550-W2000 CNC Multi-Tasking Mill-Turn Center, OSP-P300S-H CNC Control, 32.68” Max. Machining Dia., 100.16” Distance Between Spindle Noses, 78.74” Max. Machining Length, (2) 31” 3-Jaw Chucks, 3000 RPM Main/Opposed Spindles, 10,000 RPM B-Axis Milling Head with -30/+210 Degree Swivel, Automatic Tool Changer, CAPTO C8 Tooling, MP Systems High Pressure Thru-Spindle Coolant, Chip Conveyor, 40/30 HP, S/N 182761

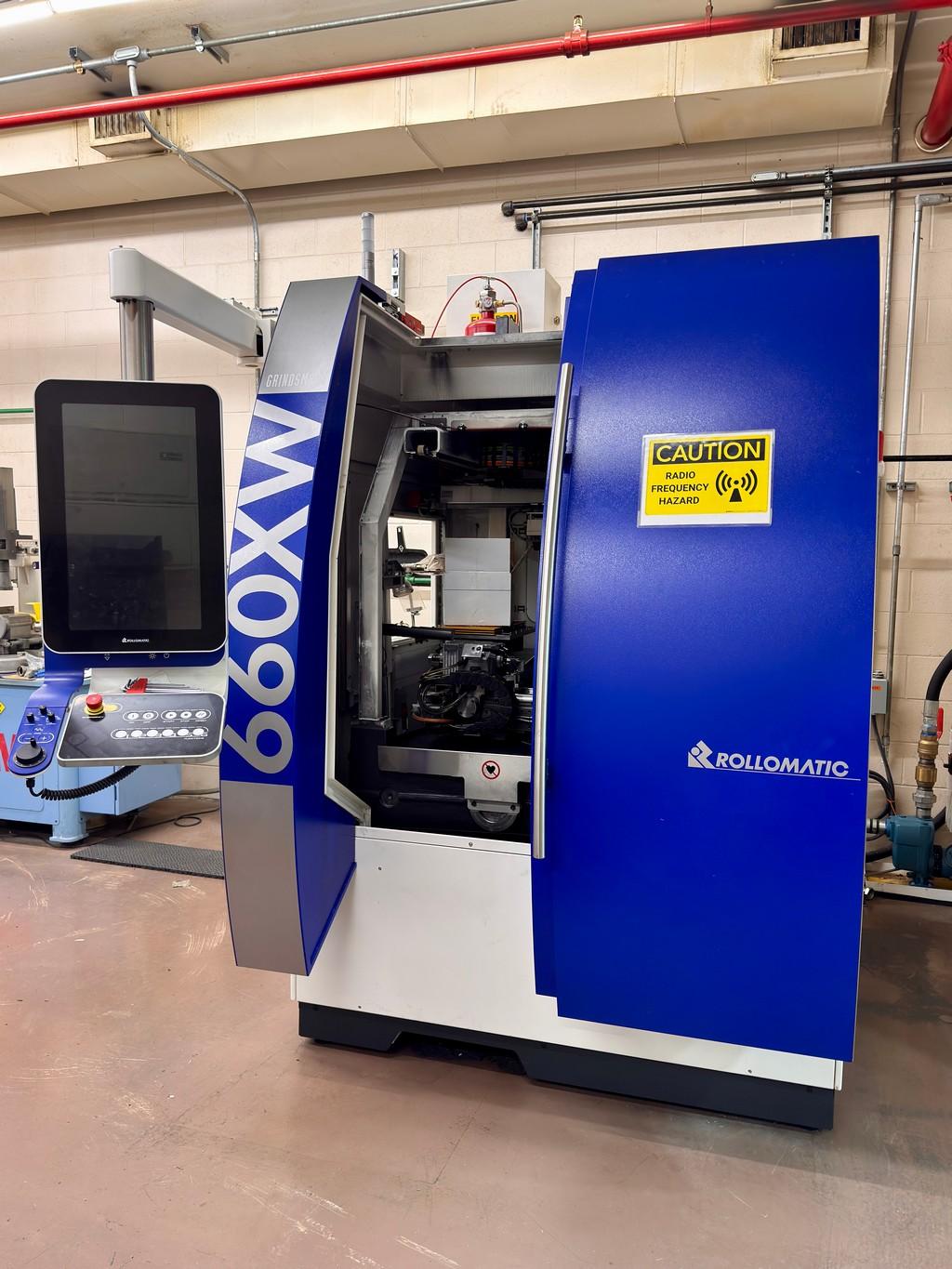

- 2022 Rollomatic GrindSmart 660XW CNC 6-Axis Hybrid Tool & Peel Grinding System, Tool Diameter Range 0.1-12.7mm, Full Rotary Tool Grinding, Peel Grinding for Necking and Plunge Grinding, (4) Linear Axes and (2) Rotary Axes, 20 HP Grinding Spindle, Linear and Torque Motors On All Axes, S/N 809753

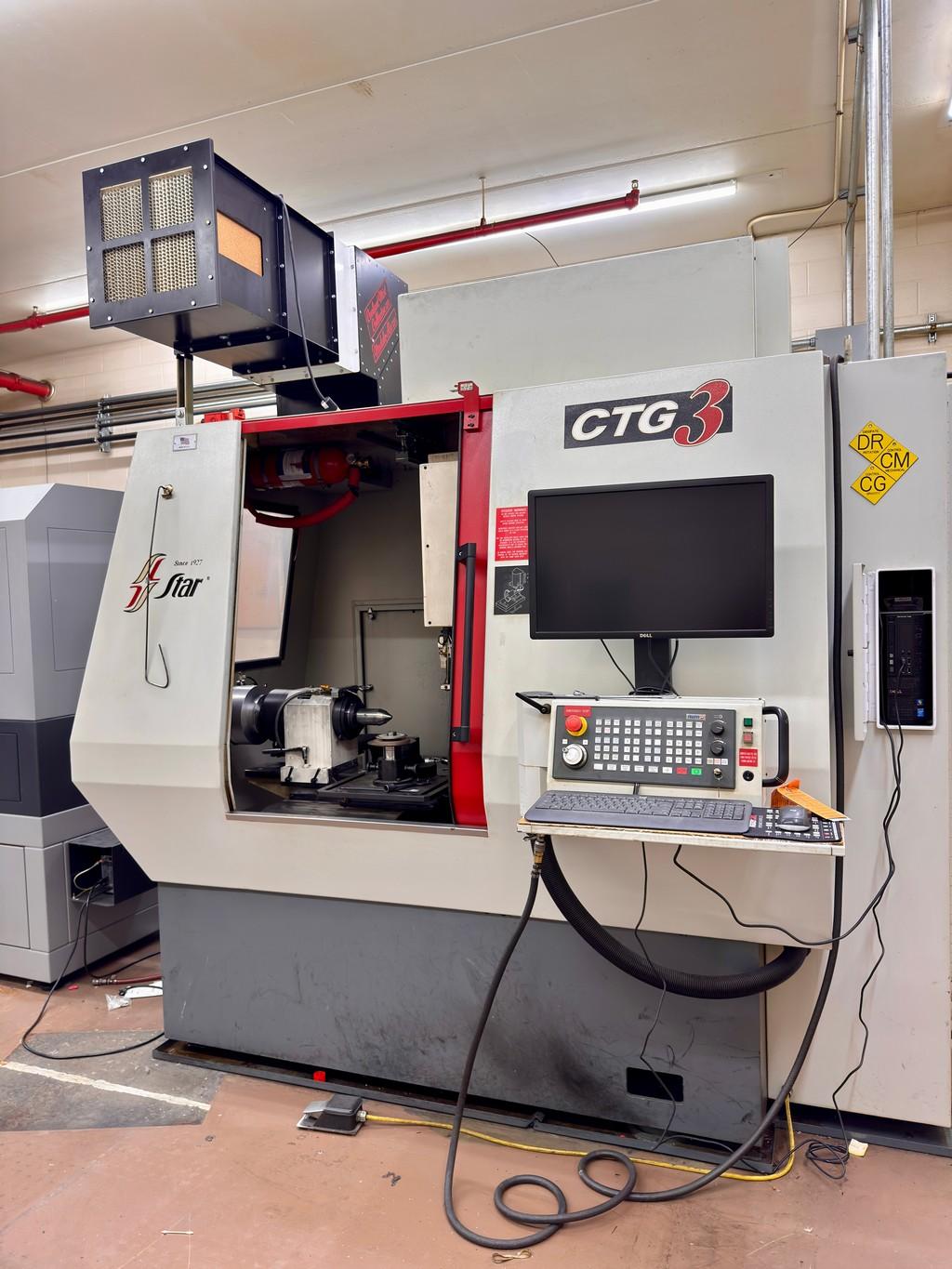

- 2008 Star CTG3 5-Axis CNC Tool & Cutter Grinder, 4” Max. Tool Sharpening Dia., 21” Max. Workpiece Length, 6” Max. Wheel Diameter, +/-110 Degree B-Axis Grinding Wheel Movement, 8.66” Y-Axis Grinding Wheel Vertical Slide, 360 Degree A-Axis Workhead Indexing, 1000 RPM A-Axis Spindle Mode, 11.0” X-Axis Spindle Slide Travel, 19.7” Z-Axis Horizontal Slide Travel, 10,000 RPM Grinding Wheel Speed, 19 HP, Direct Drive Headstock, Glass Scales, Variable RPM, S/N 101

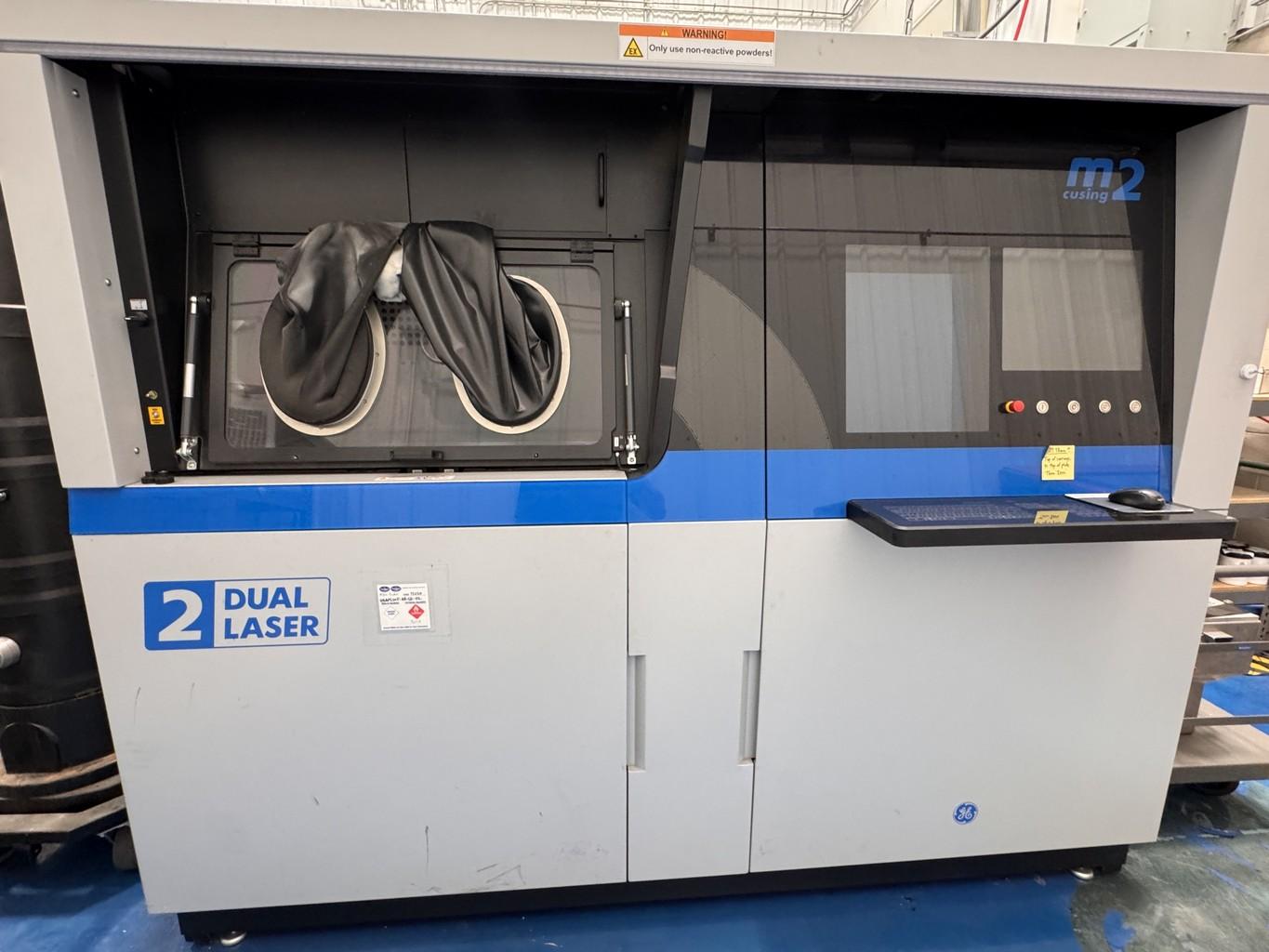

- 2022 GE M2 Cusing Series 5 Direct Metal Laser Melting (DMLM) System, Max Build Envelope 250mm x 250mm x 350mm, Designed for Layer-by-Layer Metal Powder Processing, Asset ID 20135143

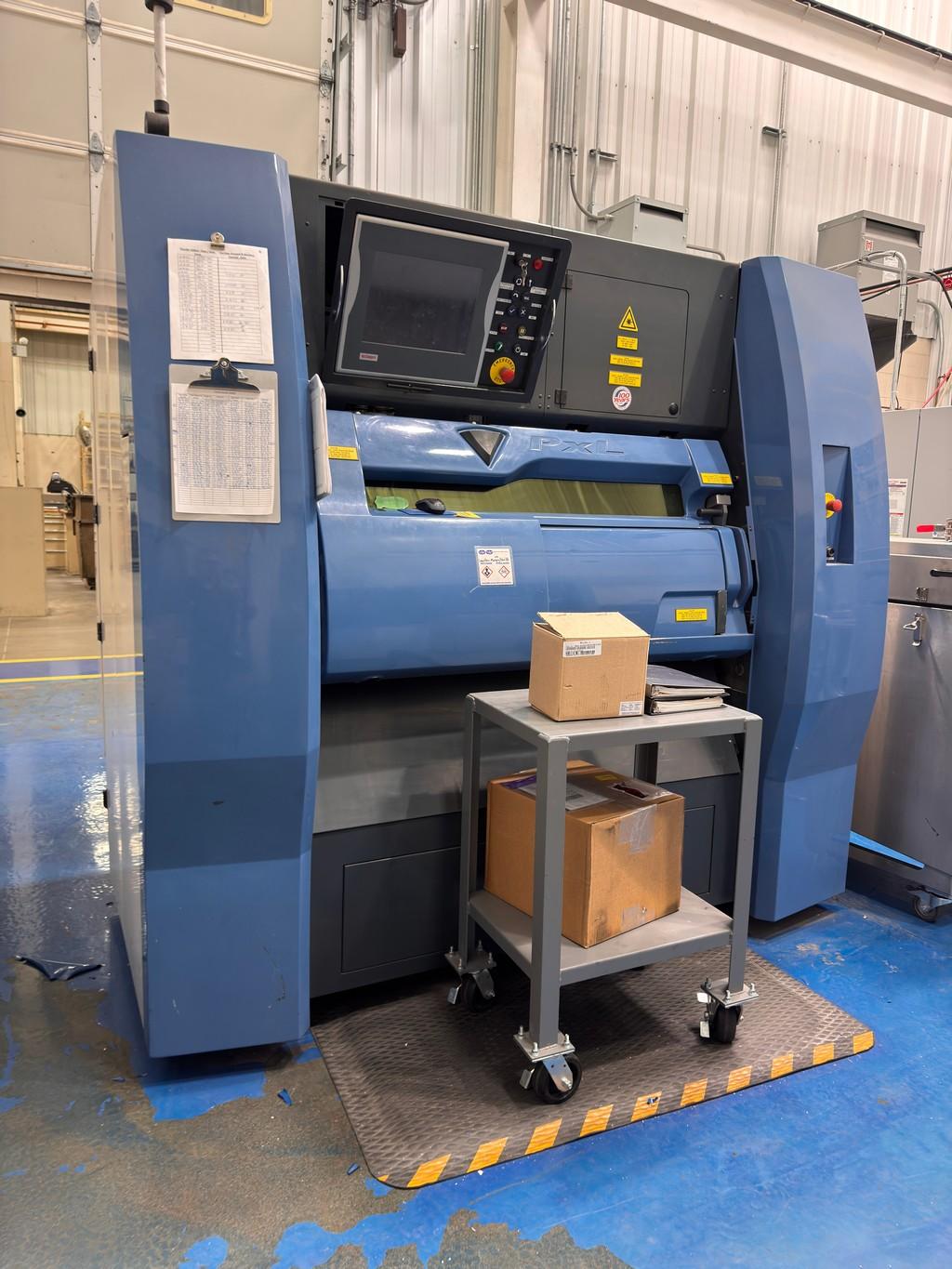

- Phenix PXL 500w Laser Sintering Machine, Max Envelope 250mm x 250mm x 300mm, Asset ID 20124516

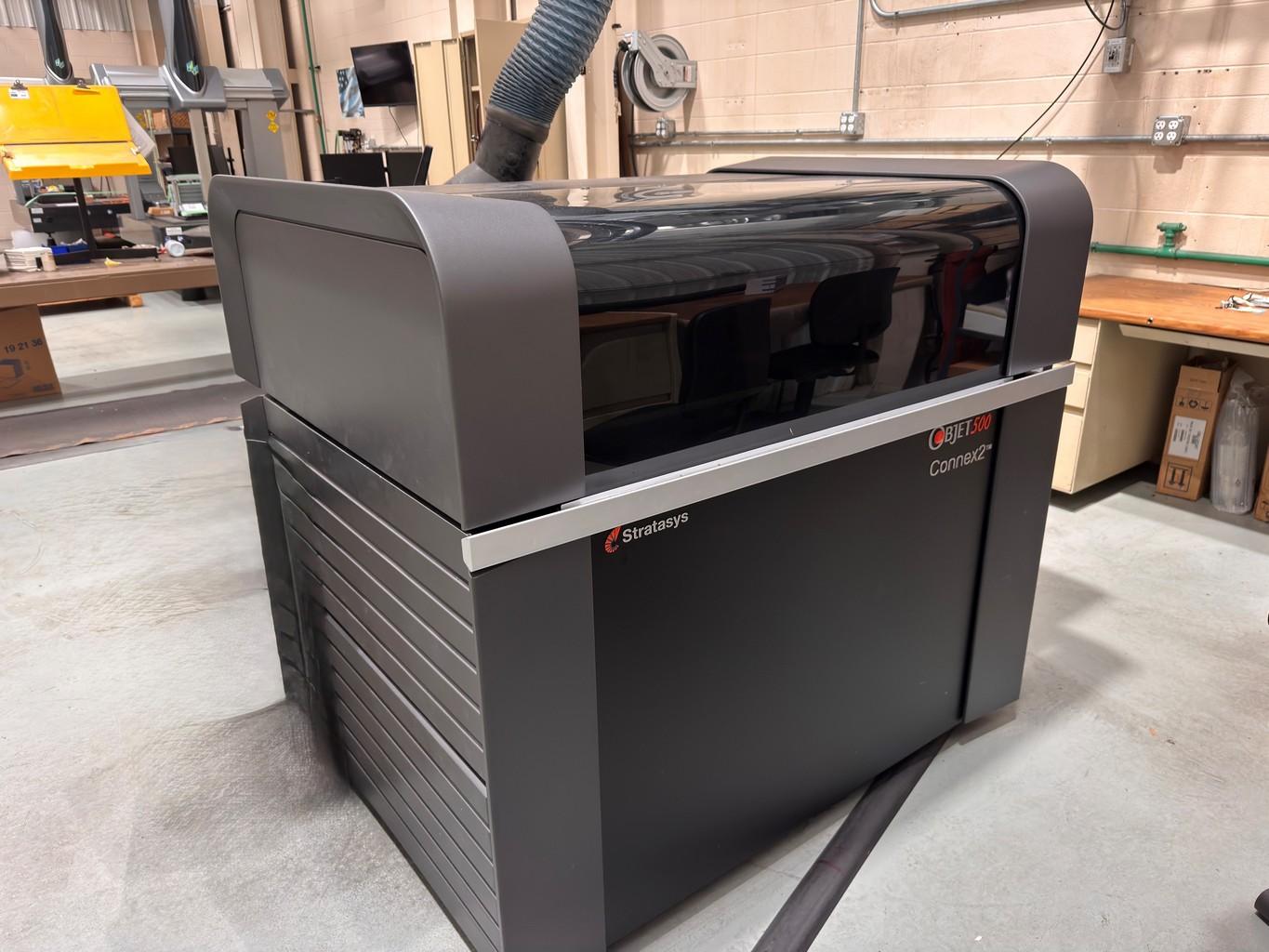

- 2014 Stratasys Objet 500 Connex2 3D Printer, Build Size 490mm x 390mm x 200mm, Build Resolution: X-Axis 600 DPI, Z-Axis 1600 DPI, S/N 520002

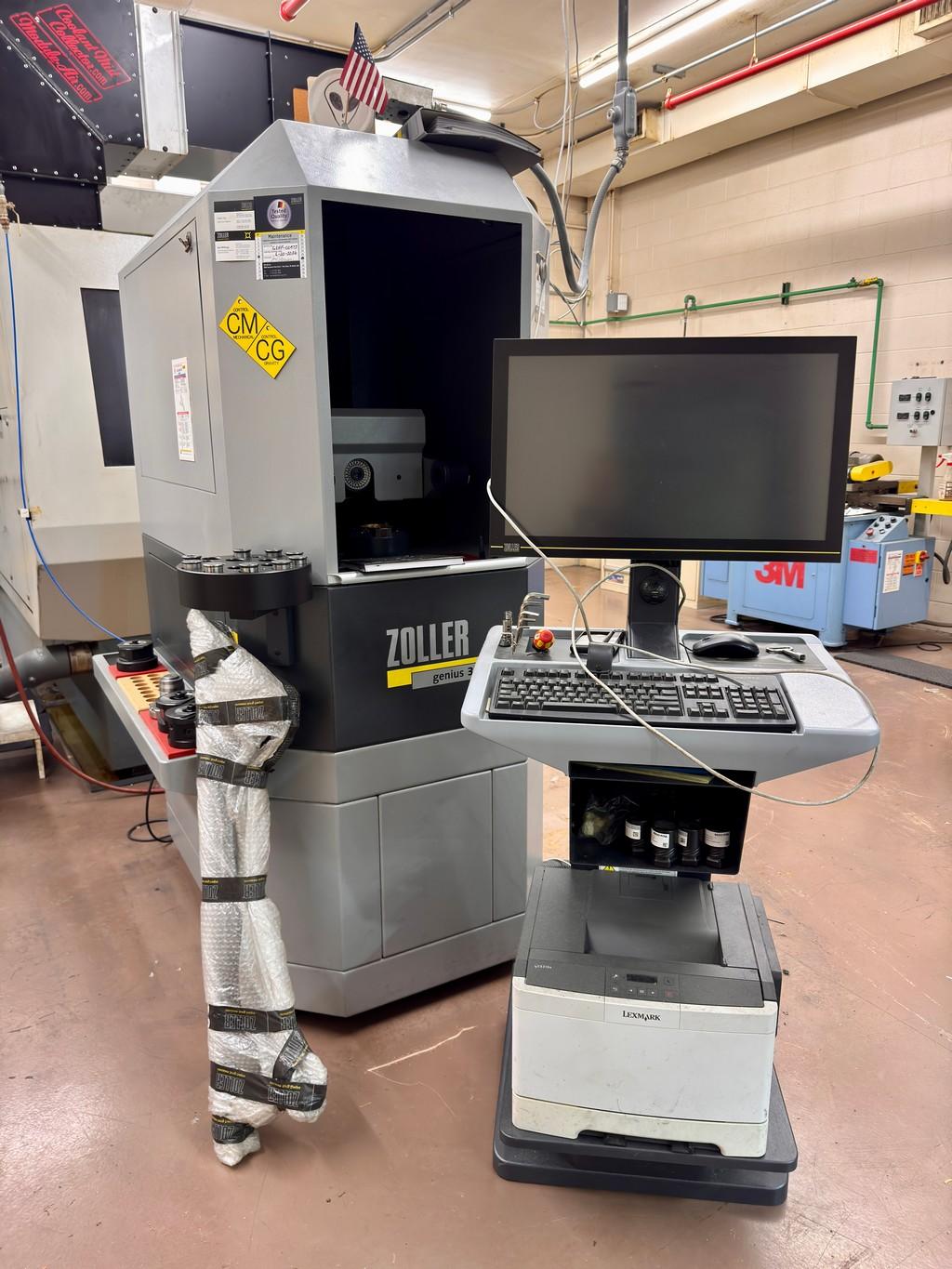

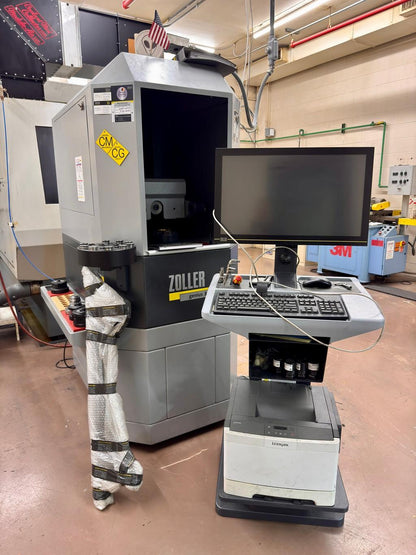

- 2018 Zoller Genius 3M / Universal Measuring & Inspection System, 2018 Zoller Genius 3M 5-Axis Universal Measuring / Inspection System for Metal Cutting Tools with Transor Filtration System
- Olympus STM6 Measuring Microscope, Compact Design, 150mm x 100Mm Capacity, Manual Focus Z Axis, Quadra Check 300 Digital Readout

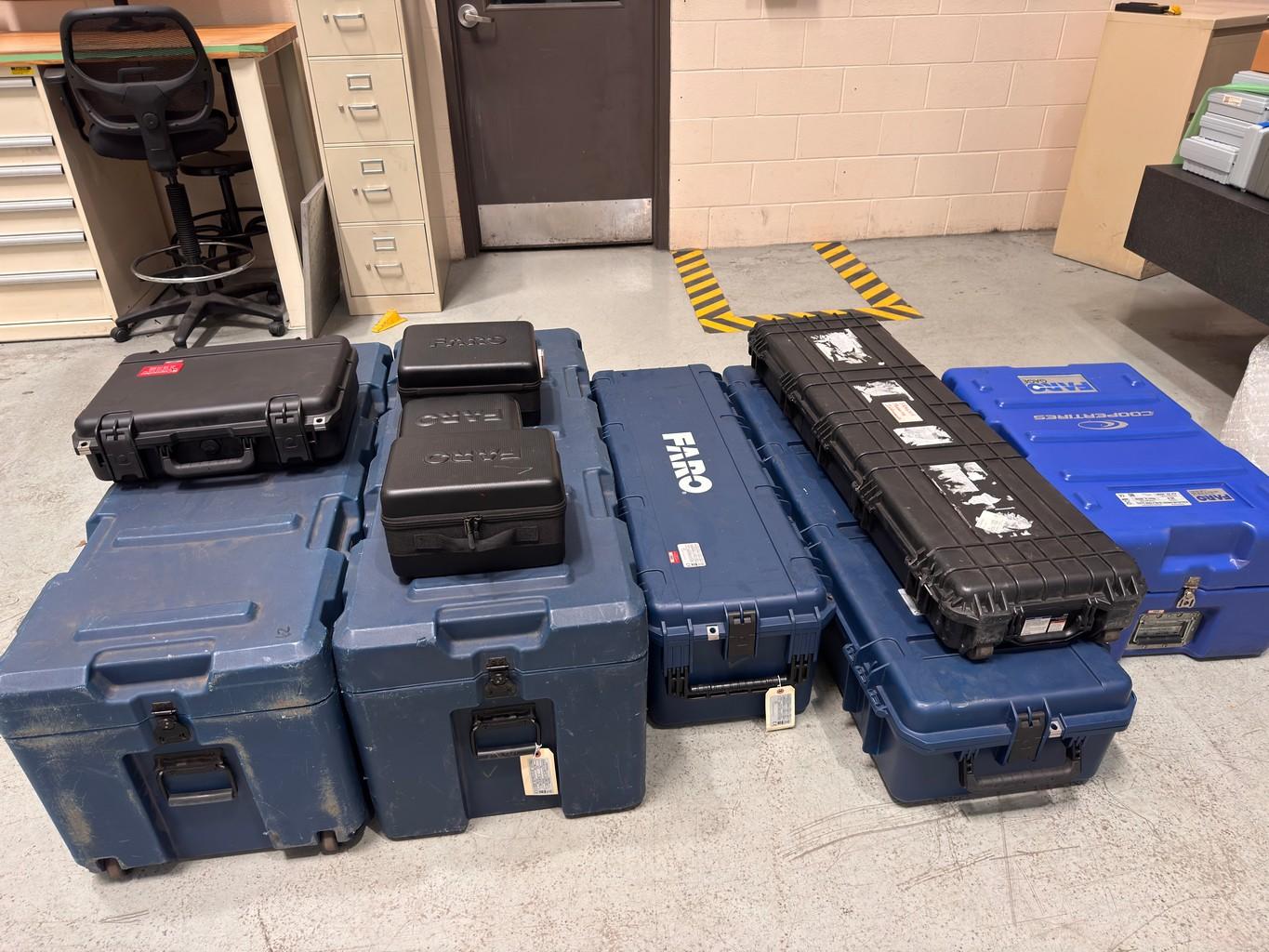

- 2022 Faro Gage Portable CMM, S/N- A15-G2-22-38226
- 2022 Faro Quantum S Portable CMM, S/N- A30-S5-22-38186
- 2020 Faro Gage Plus Portable CMM, S/N- F04-08-06939
- 2012 FARO Edge Portable CMM, S/N E09-05-12-10090
- 2012 FARO Edge Portable CMM, S/N E09-05-12-10611
- (2) Starrett Granite Tables and Related Inspection Support Equipment

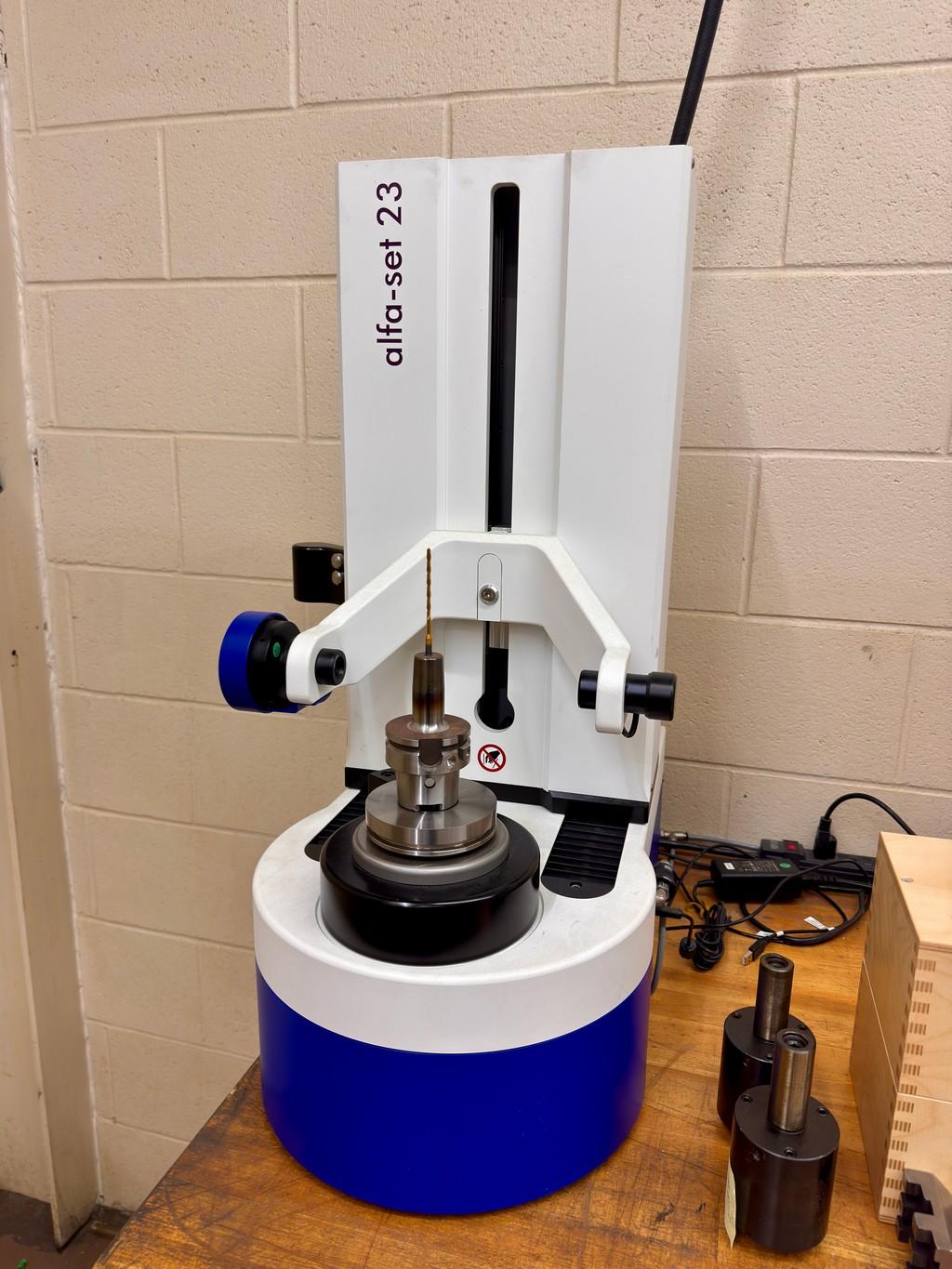

- Alfa-Sys AG Model Alfa-Set 23 Tool Presetting Machine, S/N AS02-1717

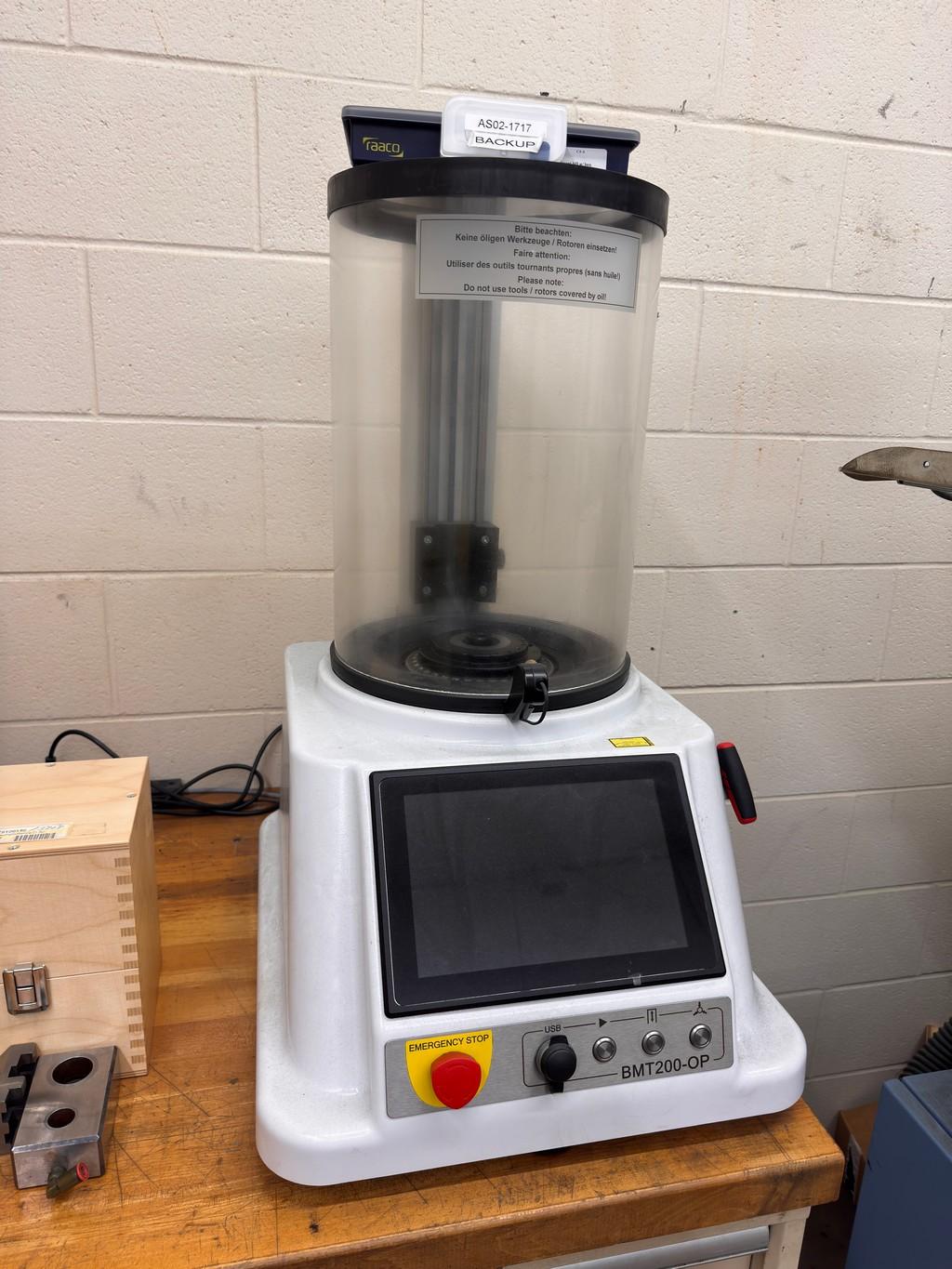

- MPM Micro 3.BTM200-2.OP100 Balancing Station, S/N 3.802.21.3203
- Bruker Contour GT 3D Optical Surface Profiling Machine
- Leco 1000 Spectrum Grinding & Polishing System
- Buehler Simplimet 2000 Hot Compression Mounting Press
- (2) Starrett Hardness Testers
- Instron 4202 Tensile Tester

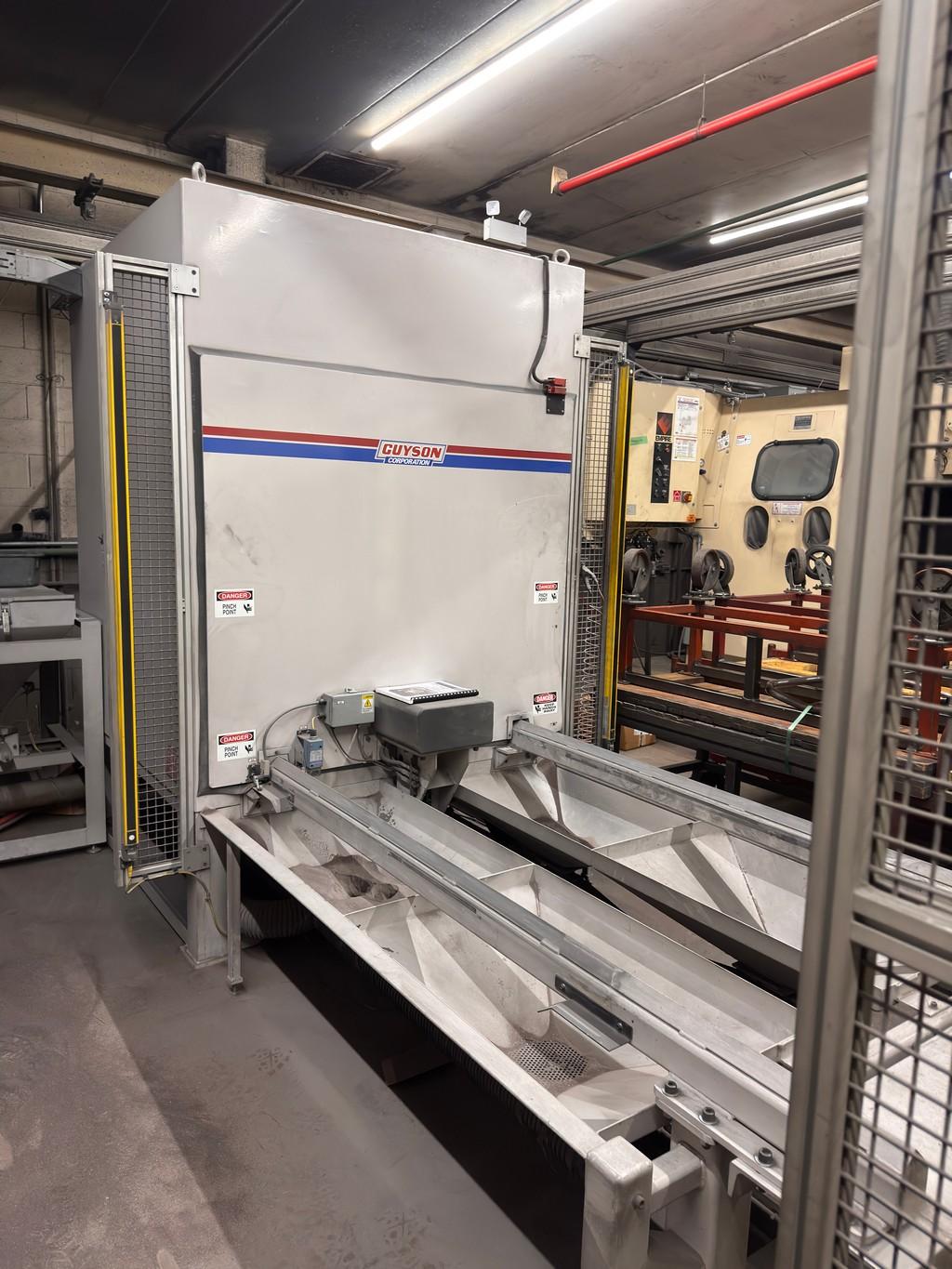

- Guyson Model 10 Media Blast System, Internal Chamber Dimensions 58” Wide x 58” Deep x 35” High, 35” Diameter Fixed Turntable, Transfer Cart, Media Reclamation System, Dust Collector, Nema Type 12 Enclosure Rating, 480 Volt, S/N- M71228
- Mass HZ-30 Denta 2000 Finishing Machine, S/N- 25239H

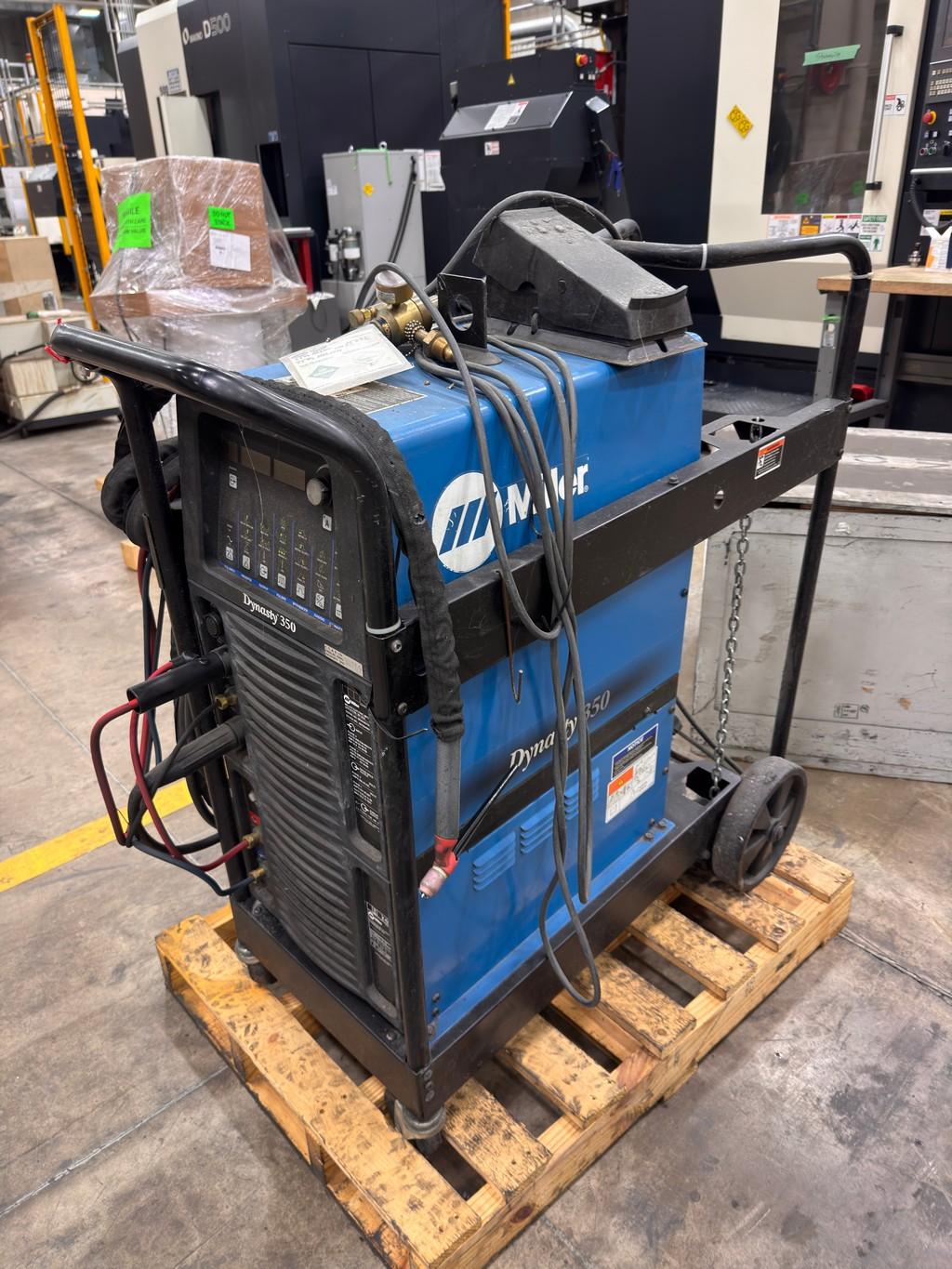

- Miller Dynasty 350 AC/DC Tig Welder
- Caterpillar E8000 Electric Forklift, 8,000 Lb. Capacity, Cushion Tire, 5 Degrees Back Tilt, E0-583 Battery Side Shifter, S/N- A2EC470327

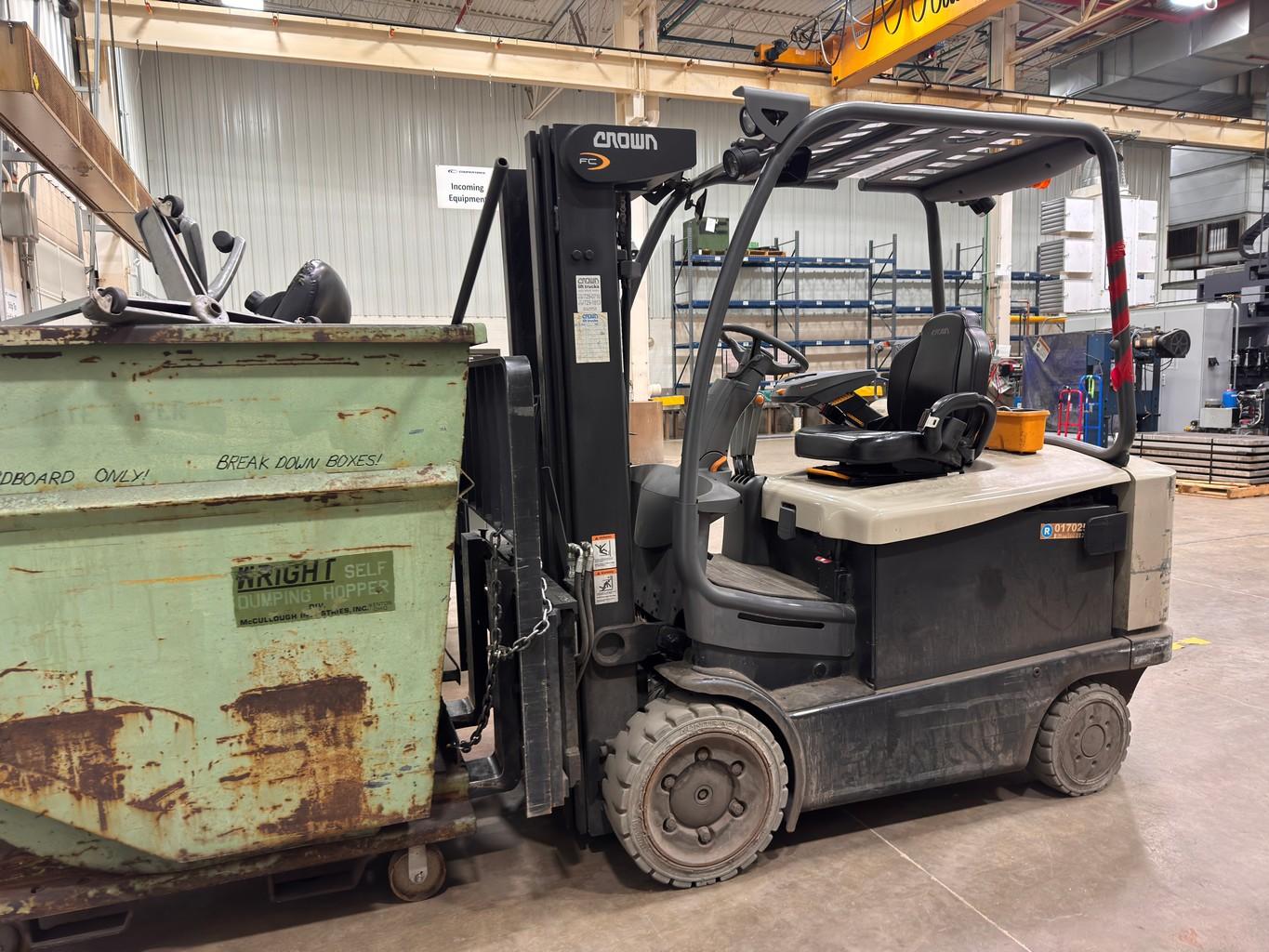

- Crown FC5245-60 Electric Forklift, 6,000 Lb. Capacity, Battery Type EO, 48 DC Volt, Cushion Tires, 5 Degrees Back Tilt, S/N- 10454006

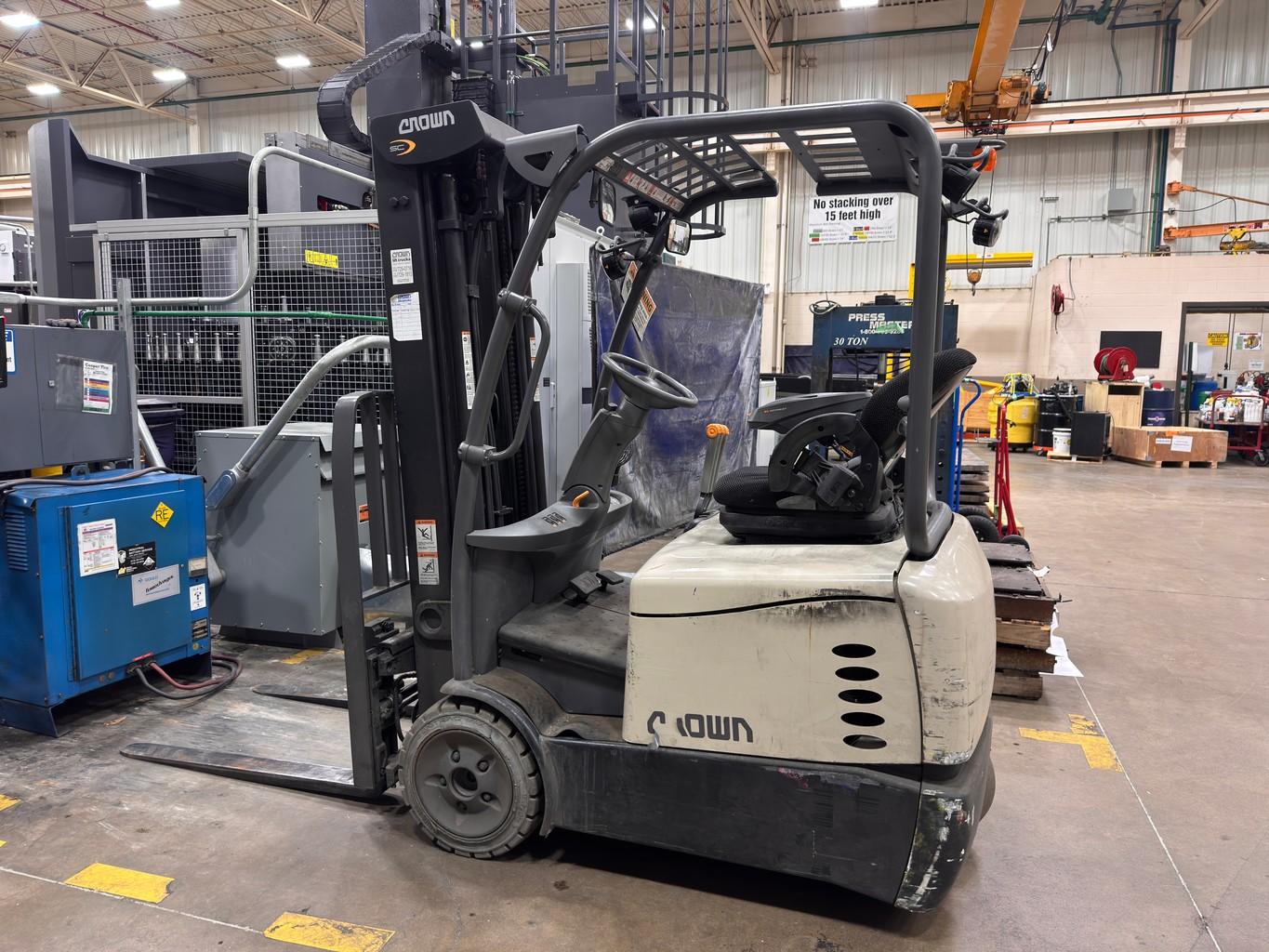

- Crown SC5715-30 3-Wheel Design Electric Forklift, 3,000 Lb. Capacity, 36 Volt EO Type Battery, 5 Degrees Back Tilt, S/N- 10463403
- Crown Stand-Up Electric Forklift, 4,500 Lb. Capacity
- Jungheinrich EFG-113 3-Wheel Design Electric Forklift, 3,000 Lb. Capacity, 24 Volt EO Type Battery, S/N- FN455065

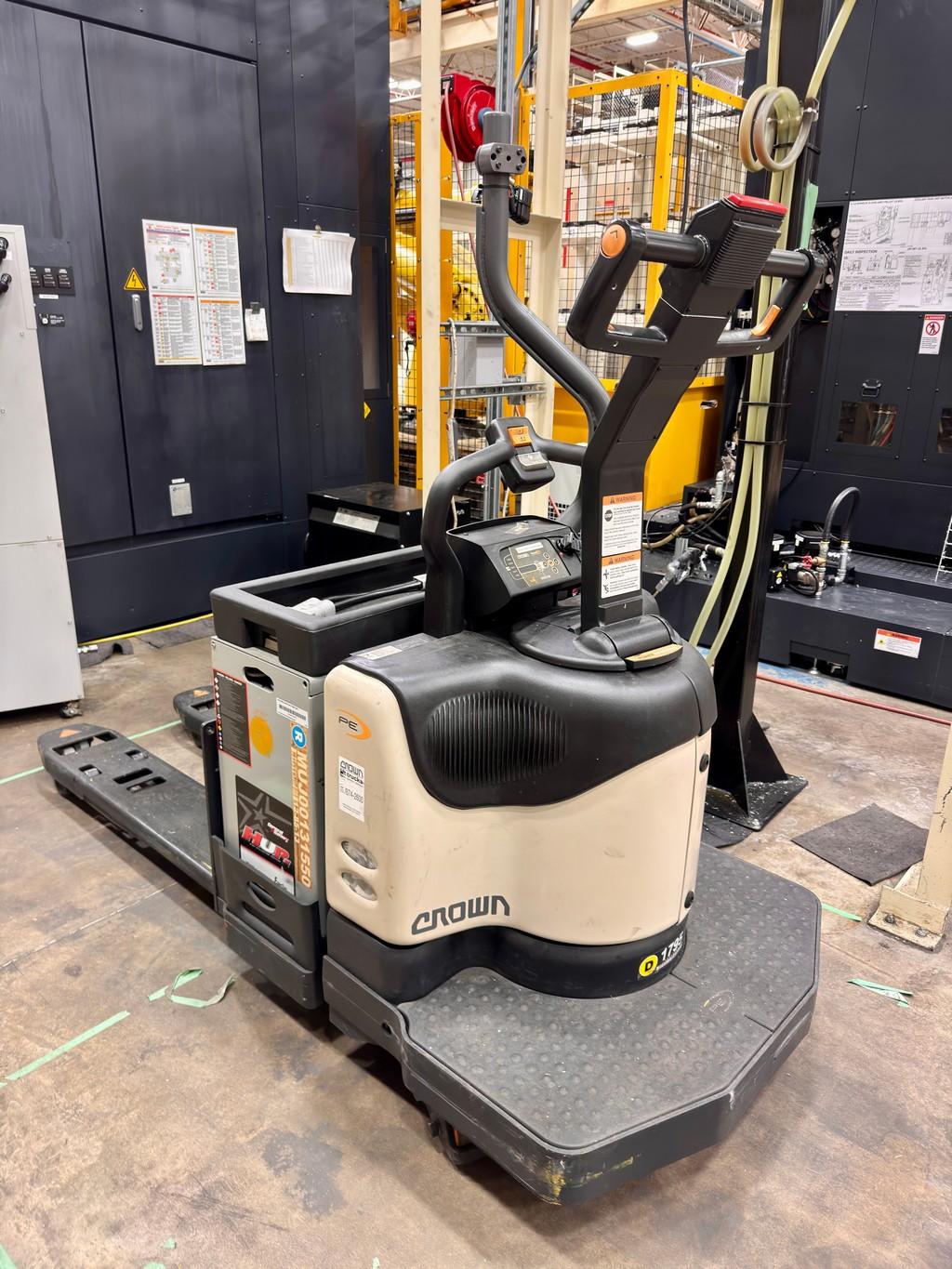

- Pallet Jacks and Material Trolleys
- Chicago 50 HP Air Compressor

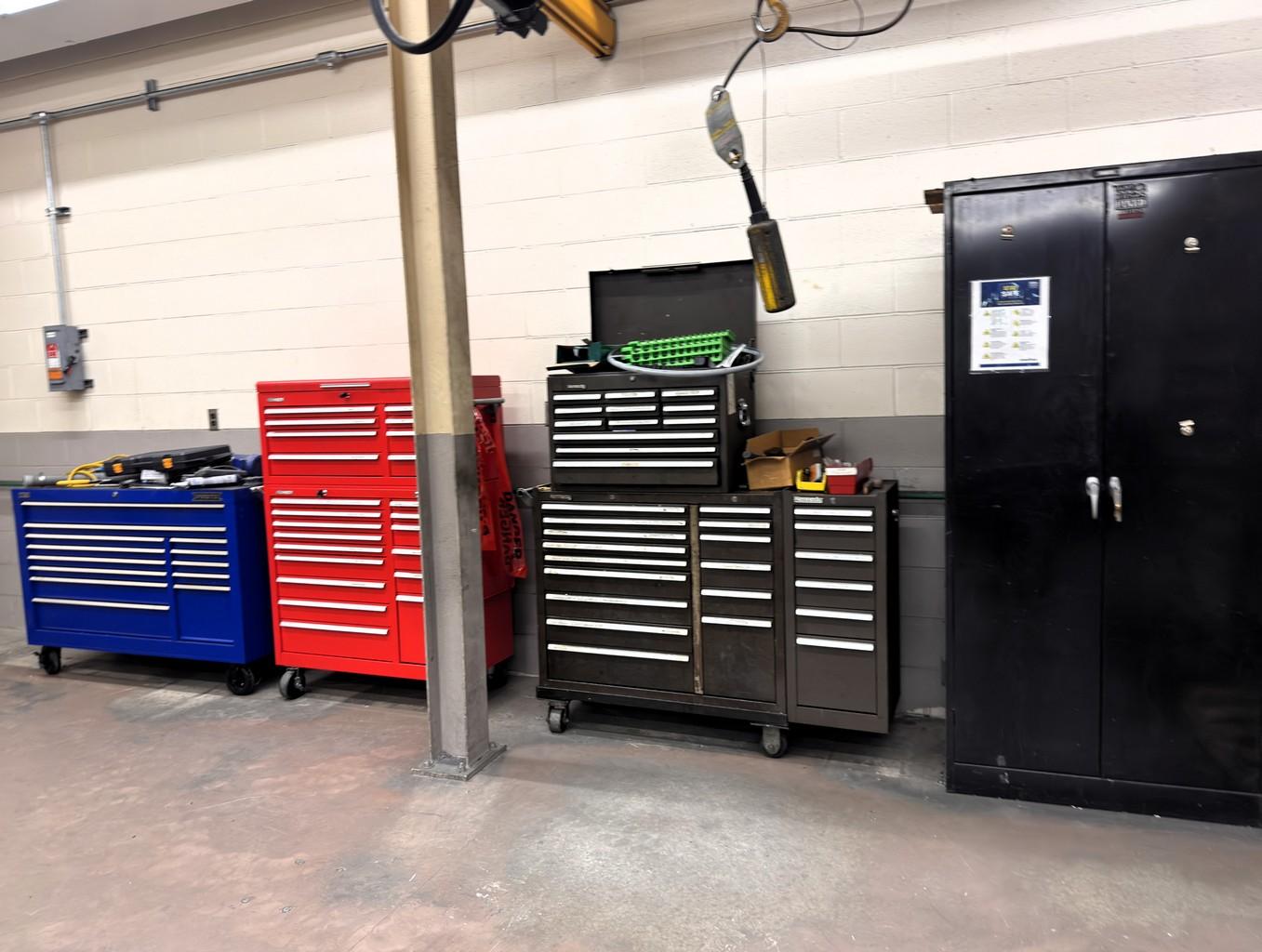

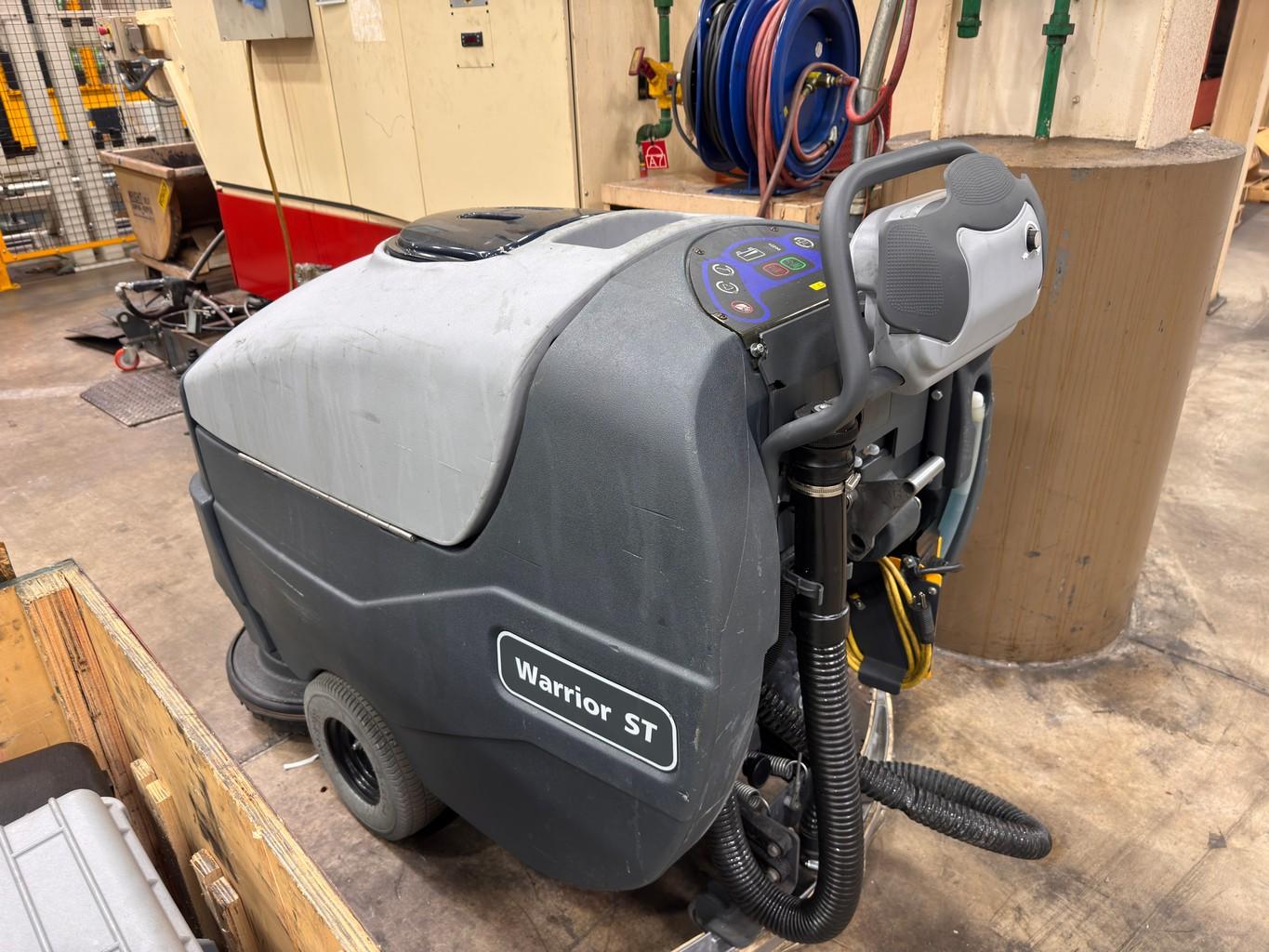

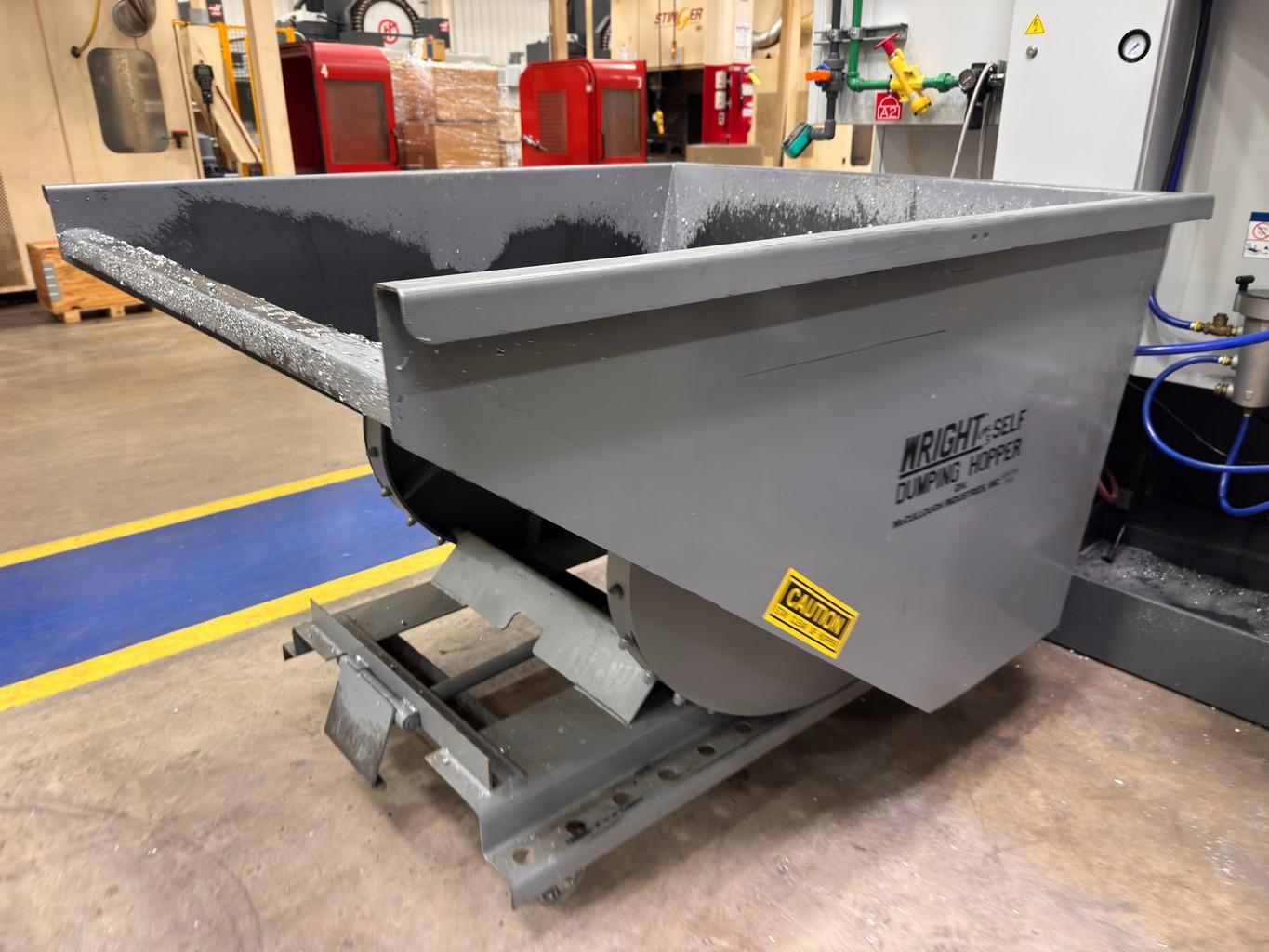

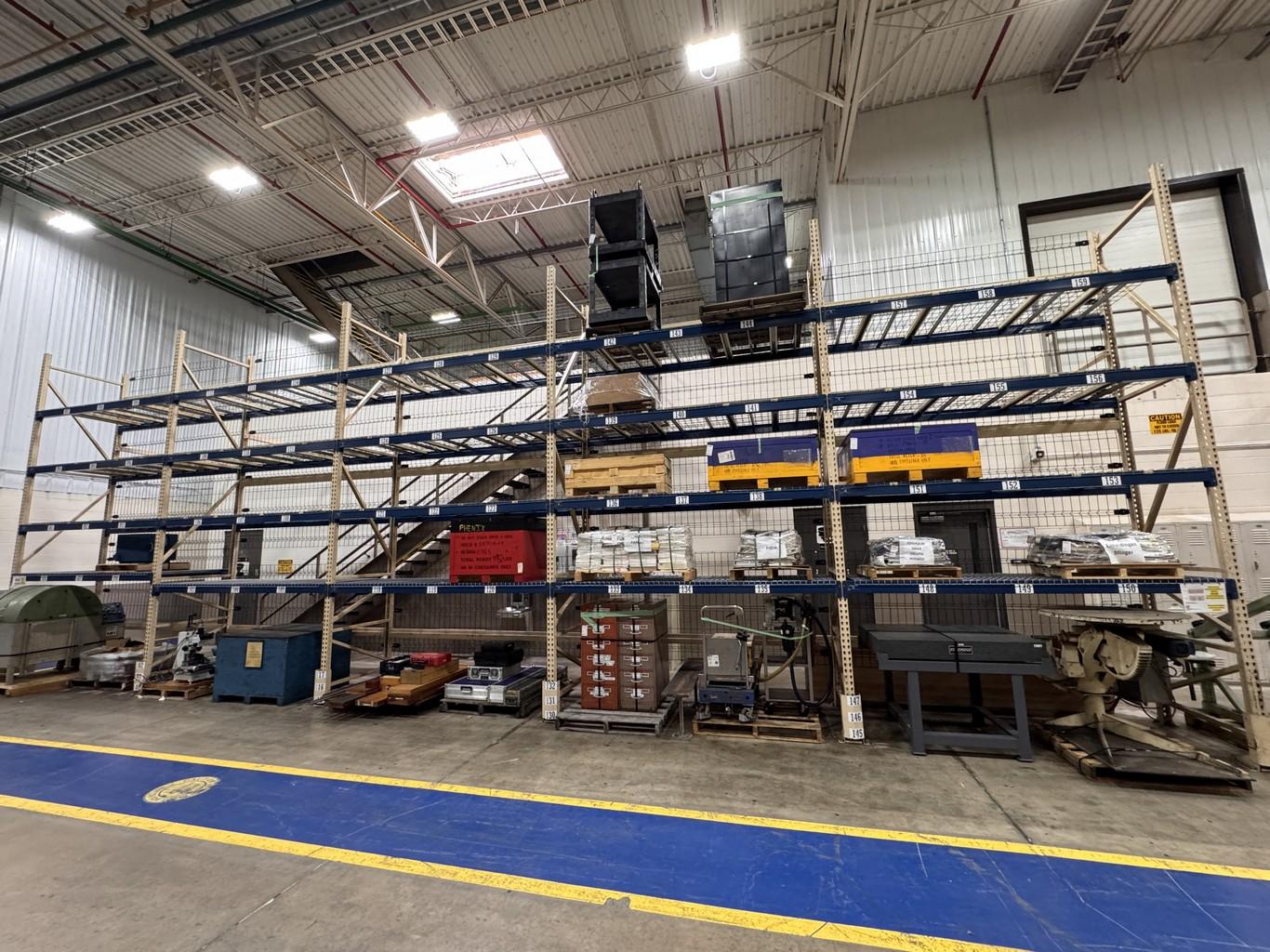

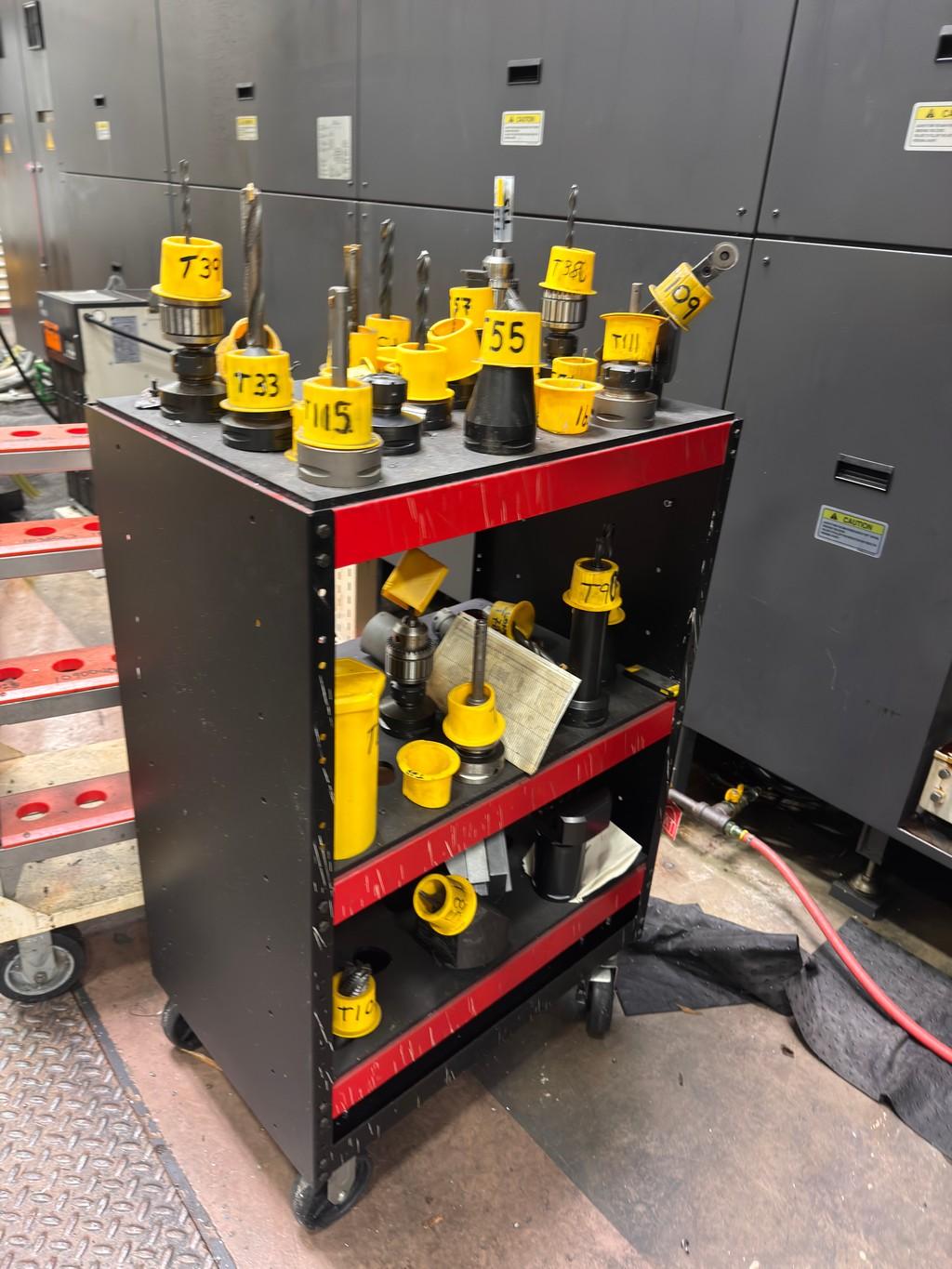

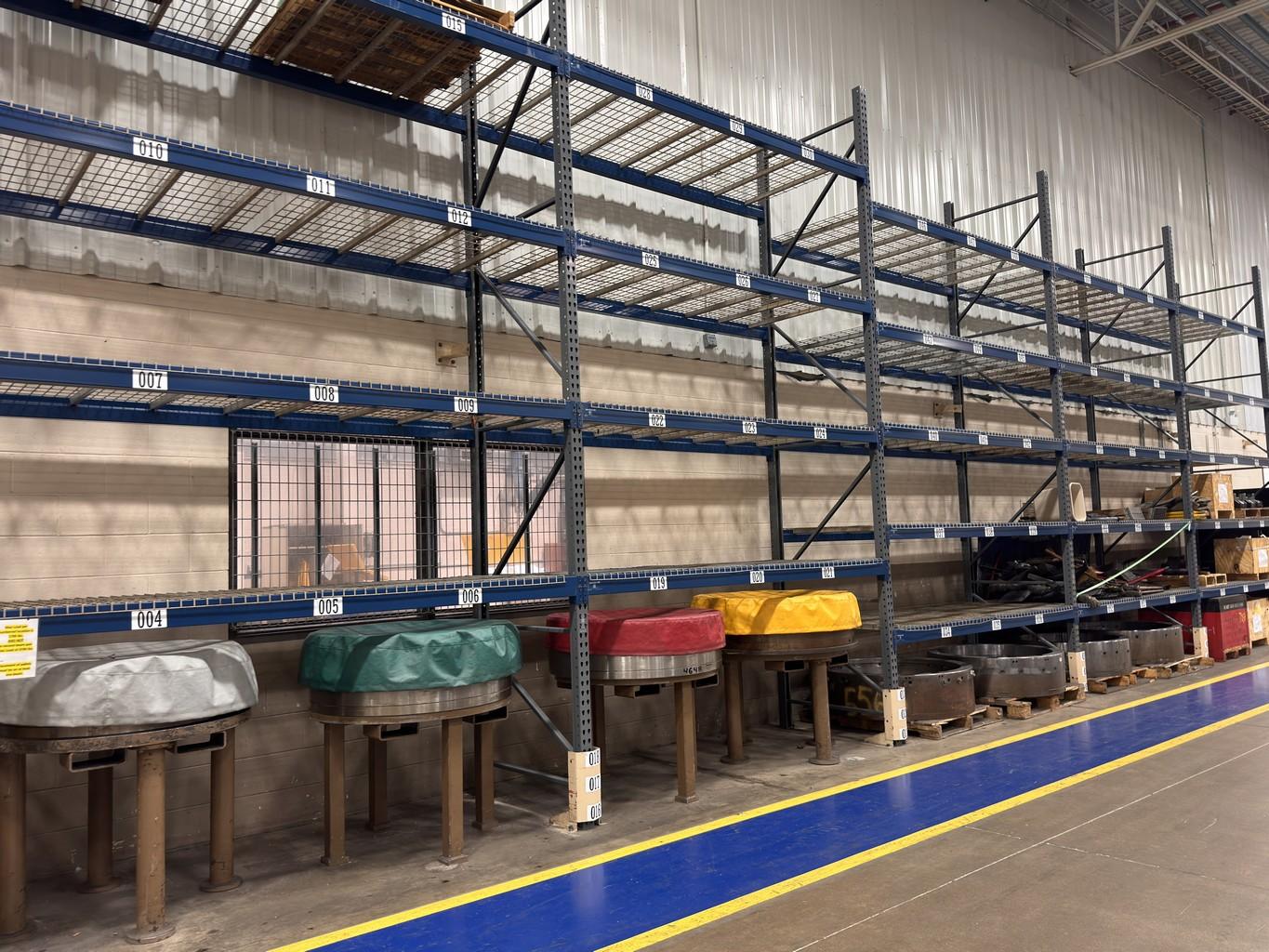

- Tool Chests, Lista Type Cabinets, Metal Worktables, CAT 50 Toolholders, HSK 63 Tool Holders, Vibratory Bowl and Hopper, Chip Hoppers, Fall Protection Device, Warrior Floor Scrubber, Pallet Racking, & Much More!
